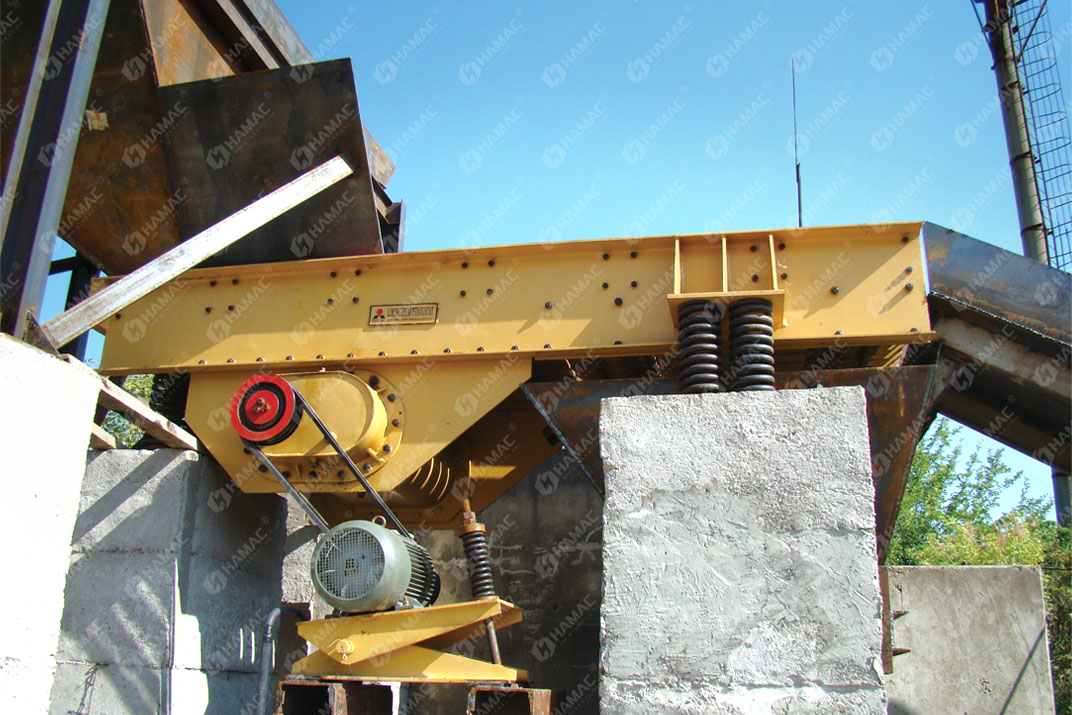

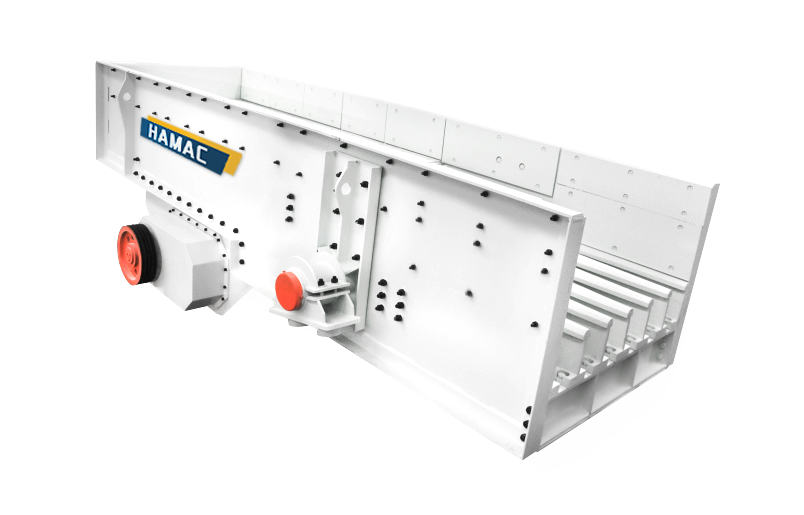

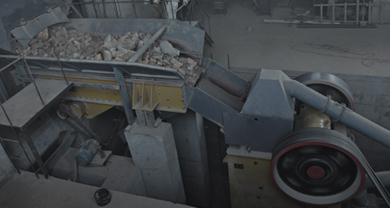

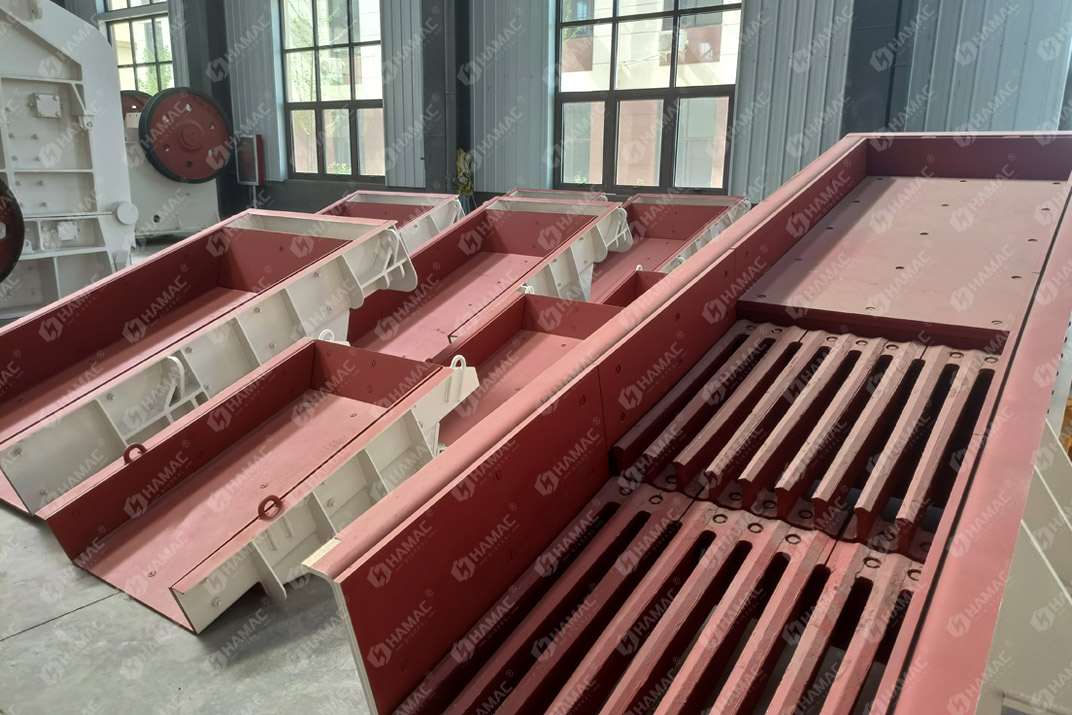

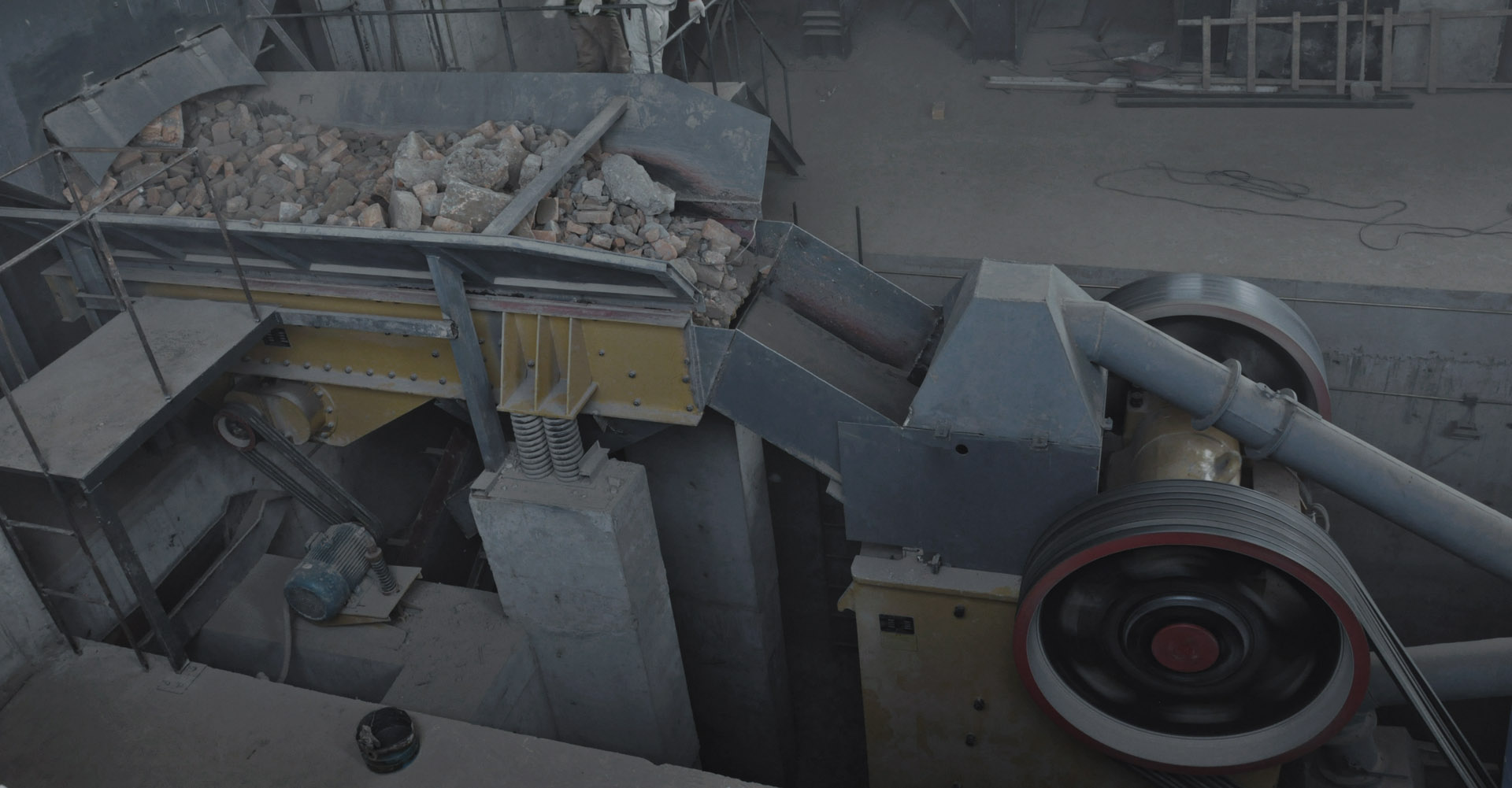

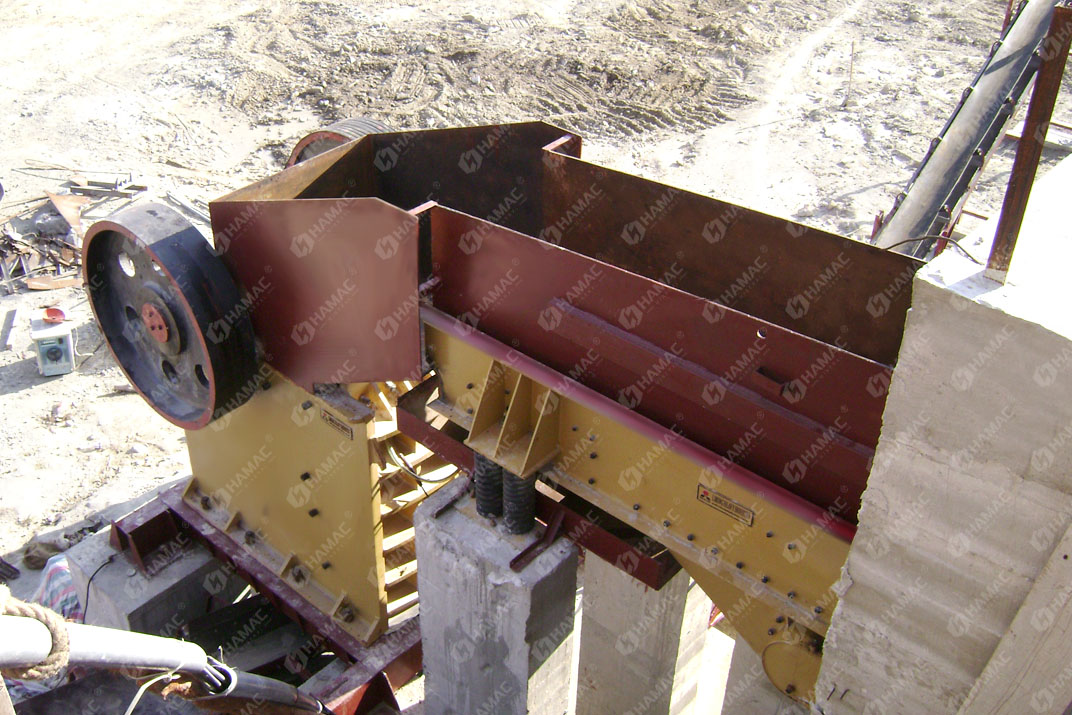

In the production process, ZSW vibrating feeder continuously and evenly transports particles and raw material blocks from the hopper to each group. In the sand and gravel production line, it can continuously transport materials to the crusher for rough screening. It is widely used in crushing and screening combined equipment in metallurgy, coal preparation, mineral processing, building materials, chemical industry, grinding and other industries.
Production Capacity : 90-900t/h
Feed Particle Size : ≤1000mm
Most types of rocks, metallic ores, and other minerals, such as limestone, granite, marble, basalt, iron ore, copper ore, and more.
Popular in aggregates, highway construction, railway construction, airport building, and several other industries.
Stable operation

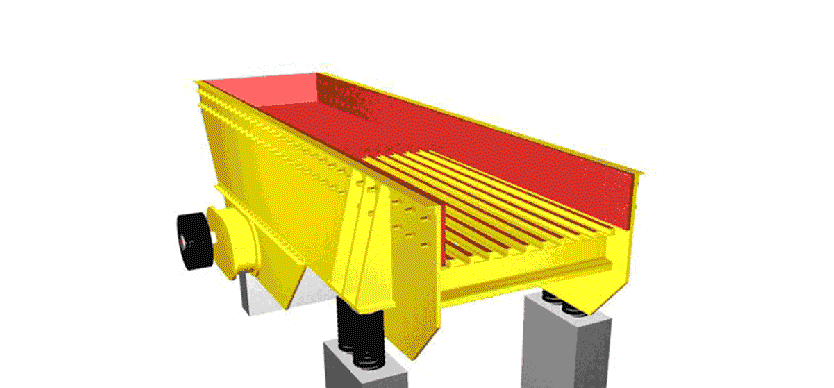

Adopting motor or eccentric shaft as the vibration source, stable amplitude, good continuity, and adjustable vibration force, can ensure the fluidity of materials.
High cost performance
Reduce the pressure of the rear-end crushing and screening links, simple structure, strong and durable.
Convenient control
Optional frequency conversion motor can be installed to adjust the frequency, thus changing the output, making it easy to control the feeding volume, without the need to start the motor frequently.
The 250-300t/h soft rock crushing plant is designed to process soft rock materials like limestone, gypsum, and dolomite. It is a r...
The 650-750t/h hard rock crushing plant is designed for high-demand mining and construction operations, offering top-tier performa...
The 450-550t/h hard rock crushing plant is designed for large-scale projects, offering high capacity, exceptional reliability, and...
The 400-450t/h soft rock crushing plant is a high-capacity solution for processing soft rock materials like limestone, gypsum, and...
Discover the benefits of the 100t/h hard rock portable crushing plant. Learn how its mobile design enhances flexibility, boosts pr...
The 100-150t/h soft rock crushing plant offers an efficient and cost-effective solution for medium-scale aggregate production. Des...
This mobile crushing and screening plant was exported to Chile in 2012. It is a complete mobile crusher and vibrating screens on t...
This 250tph stationary aggregate crushing and screening plant as delivered to South Sudan in 2011. It is a project which was inves...
This 150-180tph stationary crushing and screening plant was installed in 2009. In the spring festival holiday, this client called ...
This 150tph stationary crushing and screening plant was installed in 2011 in Iraq. It was installed in a mountain valley. Up to no...
Discover the advanced 250tph granite crusher plant in the Philippines by HAMAC Industrial Technology Group. This state-of-the-art ...
The manganese ore crushing plant was established in 2023 by a leading mining company aiming to enhance its manganese production ca...
| Model | Specification | Feeding size | Rotation speed | Capacity | Power | Weight |
|---|---|---|---|---|---|---|
| ZSW3090 | 900x3000 mm | 400 mm | 600~850 rpm | 90-180 t/h | 11 kw | 3450 kg |
| ZSW3896 | 960x3800 mm | 500 mm | 600~850 rpm | 120-210 t/h | 15 kw | 4450 kg |
| ZSW4211 | 1100x4200 mm | 650 mm | 600~850 rpm | 180-400 t/h | 15 kw | 4750 kg |
| ZSW4911 | 1100x4900 mm | 650 mm | 600~850 rpm | 250-480 t/h | 22 kw | 5350 kg |
| ZSW4913 | 1300x4900 mm | 750 mm | 600~850 rpm | 340-600 t/h | 22 kw | 6350 kg |
| ZSW6013 | 1300x6000 mm | 750 mm | 600~850 rpm | 340-600 t/h | 30 kw | 7800 kg |
| ZSW6015 | 1500x6000 mm | 1000 mm | 600~850 rpm | 400-800 t/h | 37 kw | 8900 kg |
