250tph stationary aggregate crushing and screening plant in South Sudan

This 250tph stationary aggregate crushing and screening plant was delivered to South Sudan in 2011. It is a project that was invested in by our clients from Lebanon. It includes one vibrating feeder, one jaw crusher PE900*1200, two units of secondary crushers (SYMONS cone crushers), and two units of vibrating screens. All the main machines were purchased from HAMAC. The belt conveyors were fabricated at the site by the client.

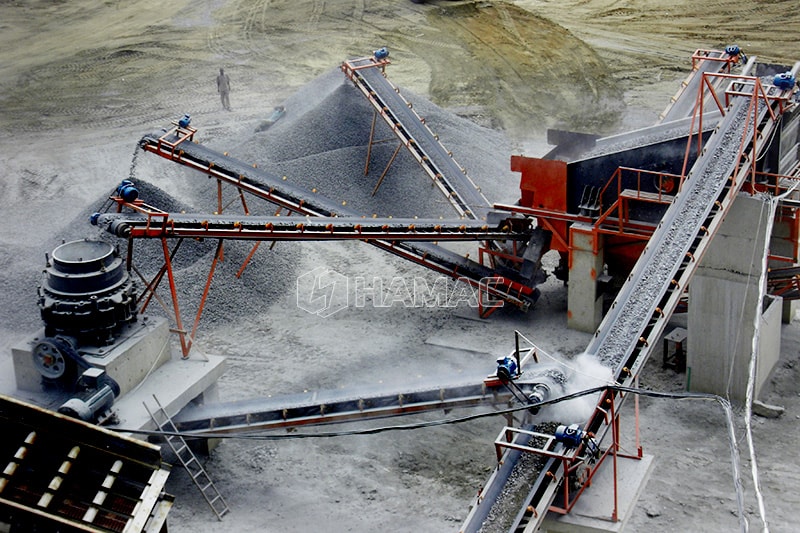

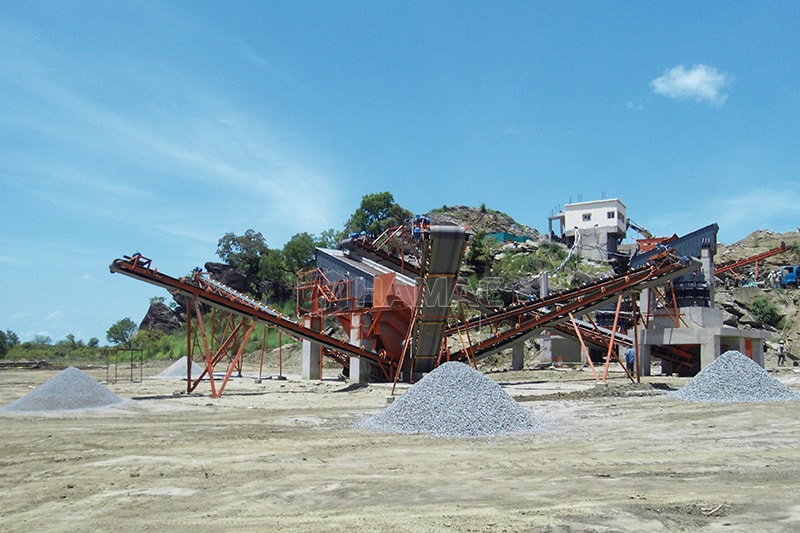

Aggregate production line in South Sudan

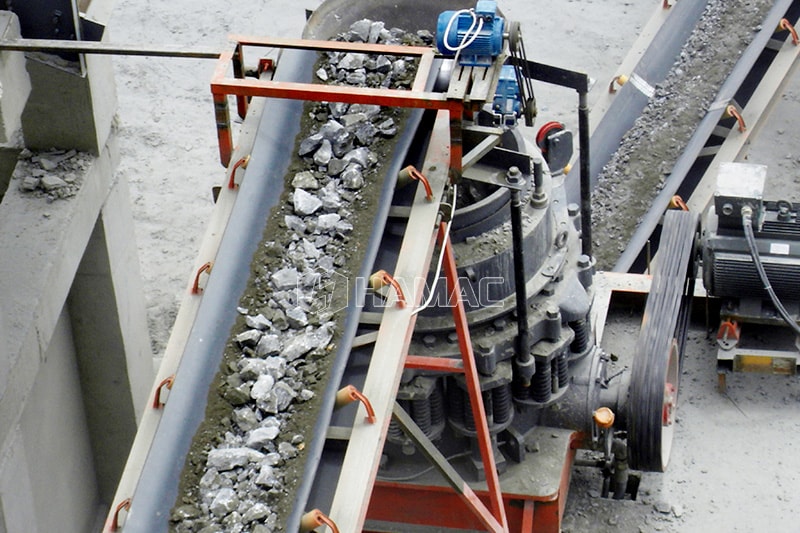

Cone crusher and vibrating screen

Detailed information of this aggregate crushing and screening plant in Juba, South Sudan:

• Raw material : basalt
• The maximum feeding size : 756mm,
• Vibrating feeder : ZSW1300*4900;
• The jaw crusher is PE900*1200; feeding opening 900*1200mm;
• Secondary crusher : Cone crusher 4.25ft, two units, one coarse cavity, one short head cavity;
• Nominal capacity : 250-300t/h;

Tips you should know when selecting aggregate crushers and vibrating screens:

• What is the raw material you want to crush? Such as limestone, basalt, granite, andersite or river stone.
• What is the maximum feeding size of the stone before crushing?
• What is the output size and how many different sizes do you want to obtain?
• How many tons per hour do you wish to process?

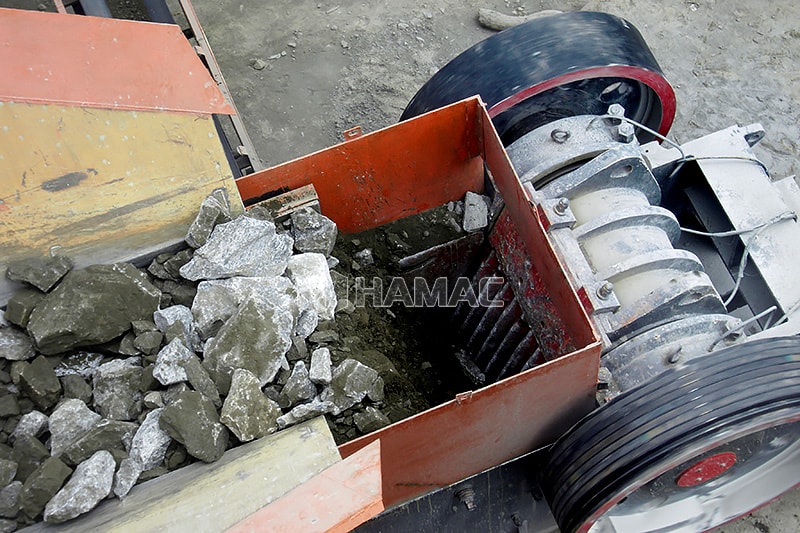

Feed the stone to jaw crusher

Feed the stone to cone crusher

Services provided by HAMAC

We can select the proper crushers and screens based on the information provided by our clients. We can issue layout drawings to indicate machine positioning. Additionally, we can arrange for our technicians to visit the working site to guide the installation of the machines and train local workers.
