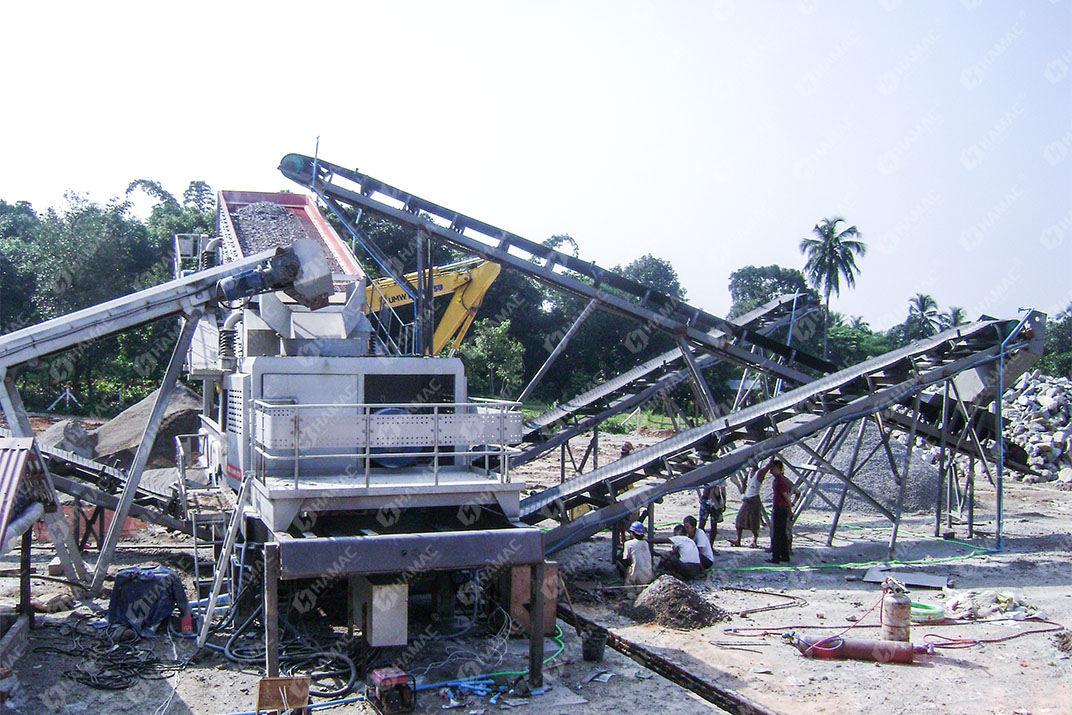

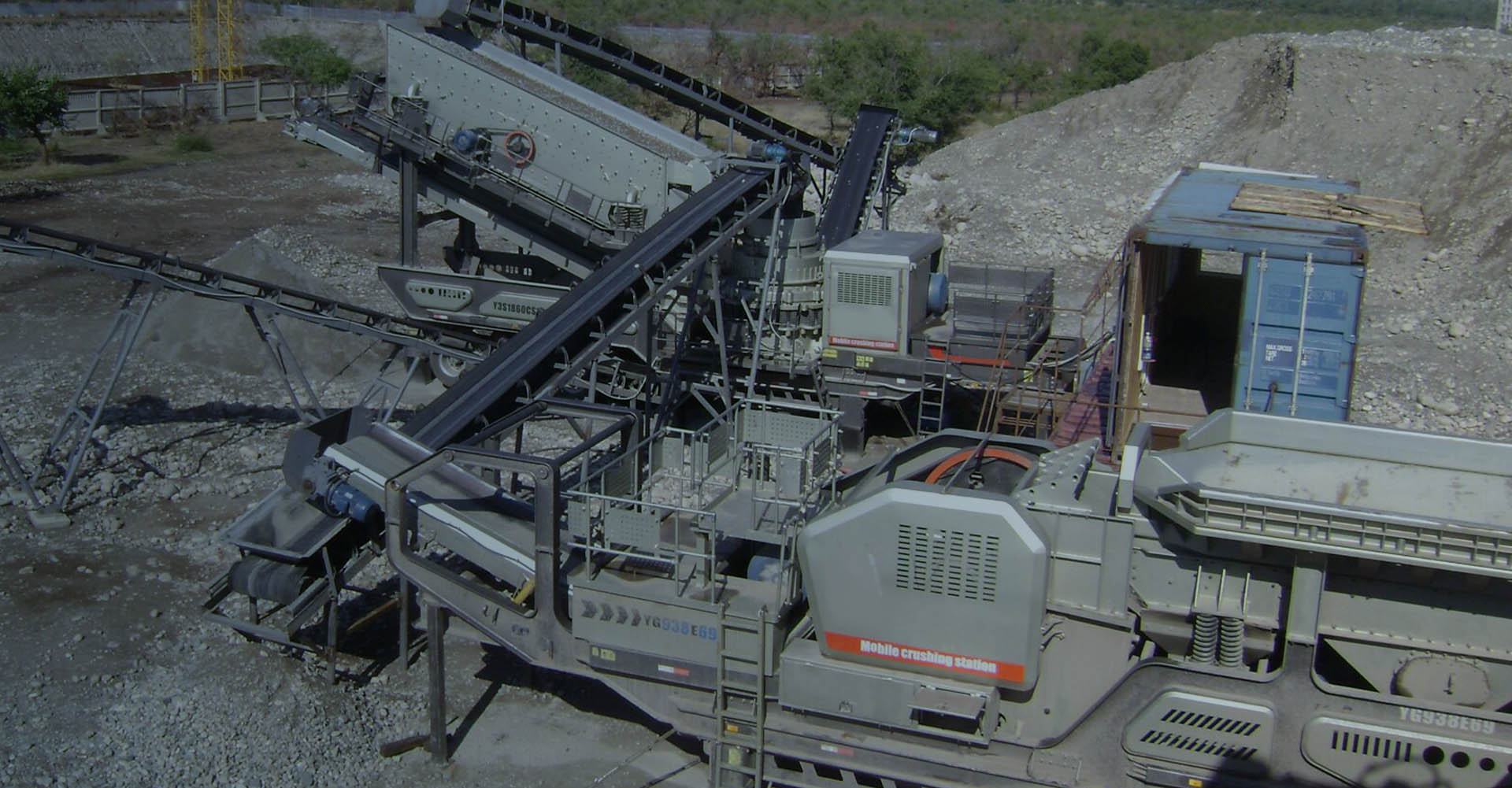

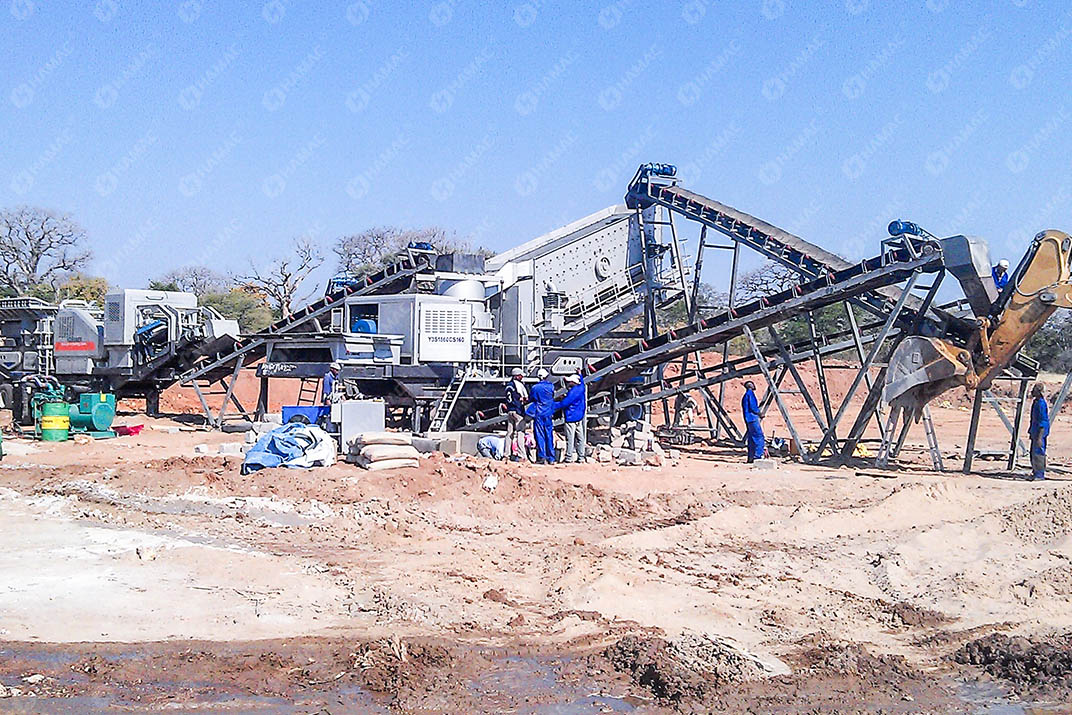

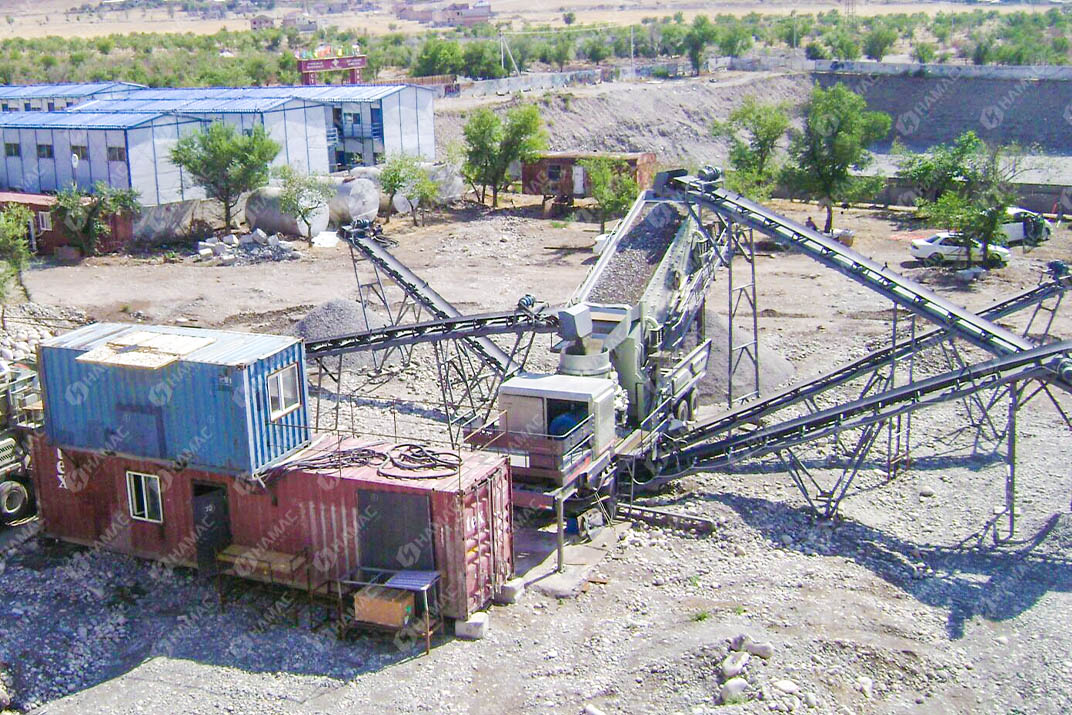

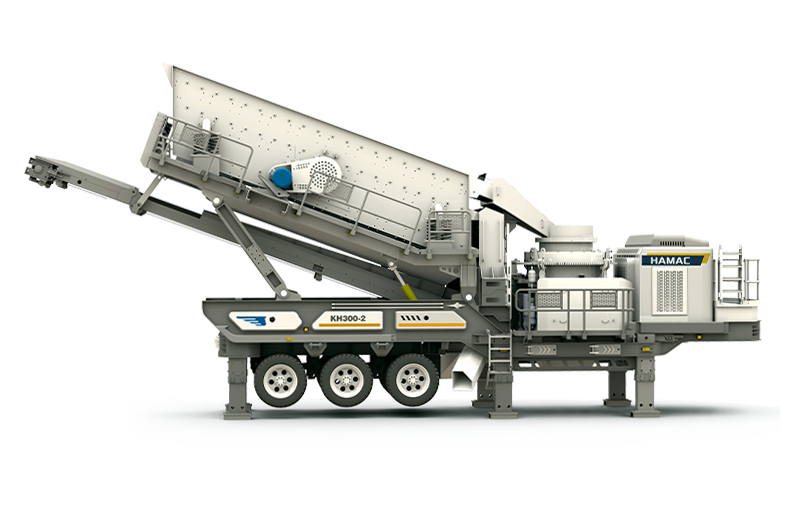

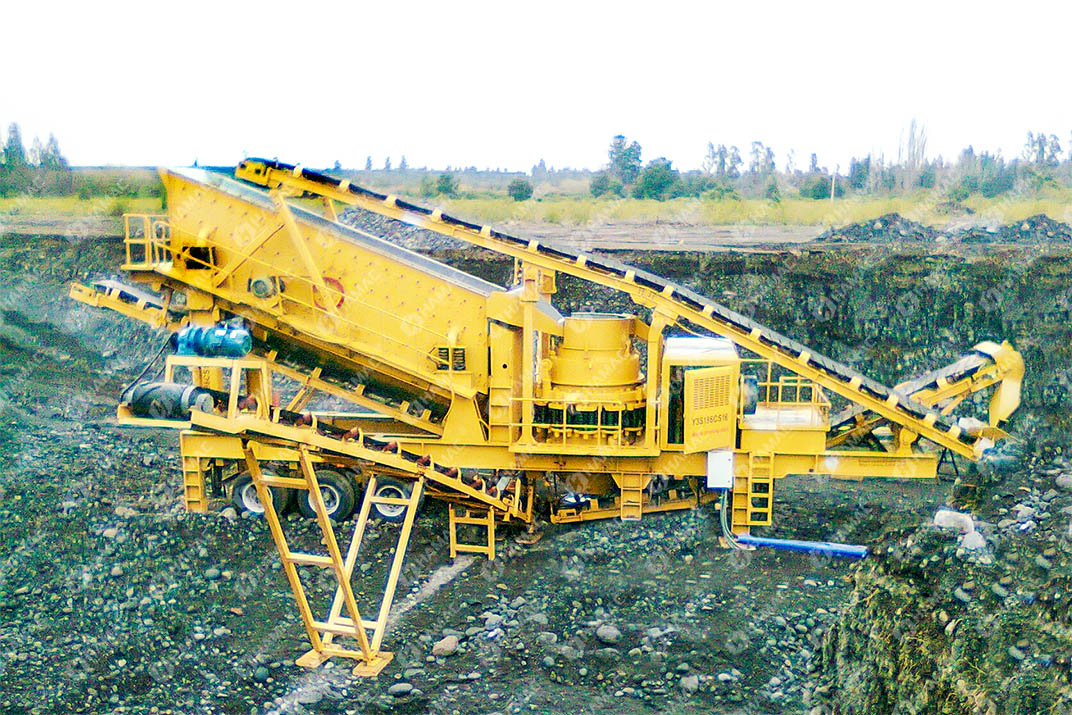

The mobile cone crushing plant is a cutting-edge solution designed to enhance coarse and fine crushing operations. It addresses challenges like site restrictions, environmental concerns, and complex infrastructure requirements. Equipped with advanced cone crushers and high-performance vibrating screens, it adapts to various rock types and crushing needs. Our team offers customized solutions to meet specific capacity demands, ensuring flexibility and efficiency. Combining mobility, reliability, and adaptability, this innovative system is ideal for modern crushing applications across diverse environments, delivering optimal performance and ease of use.
Most types of rocks, metallic ores, and other minerals, such as limestone, granite, marble, basalt, iron ore, copper ore, and more.
Popular in aggregates, highway construction, railway construction, airport building, and several other industries.

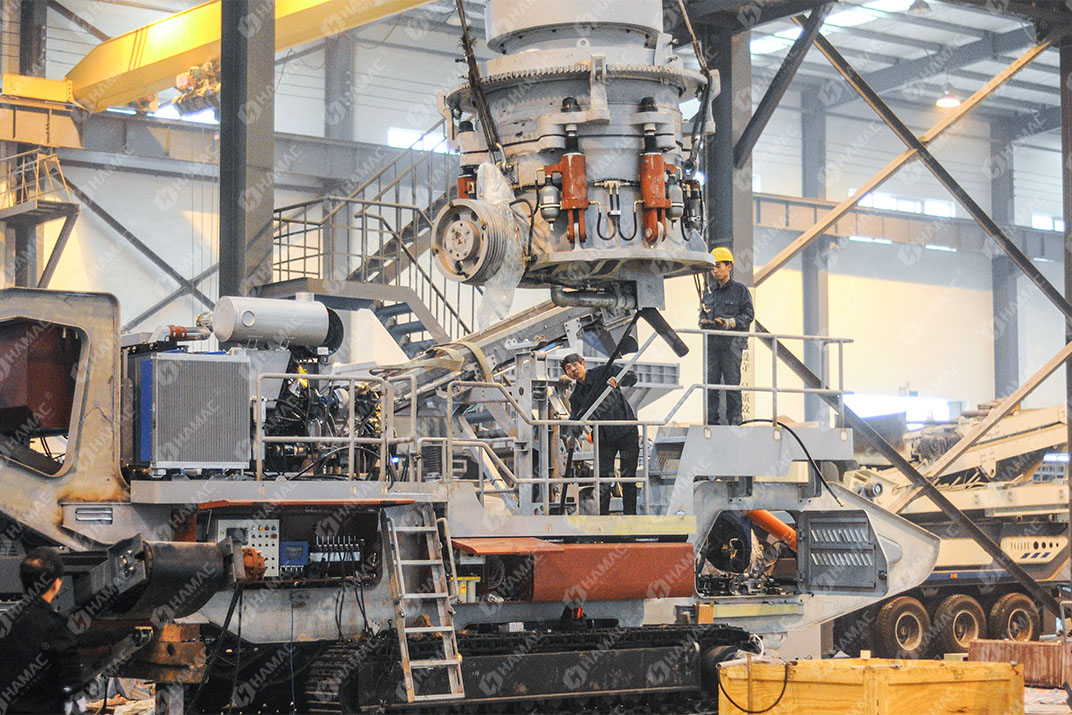

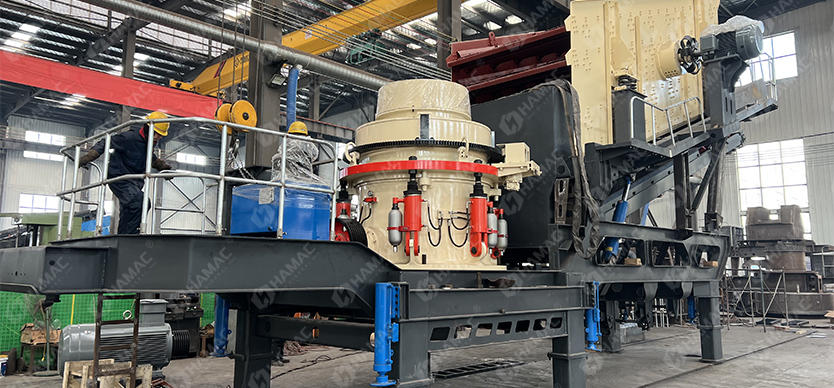

1.Different types cone crushers as options, we can provide you with Symons cone crusher, HP hydraulic cone crusher and single cylinder cone crusher;
2.There are options for coarse crushing and fine crushing;

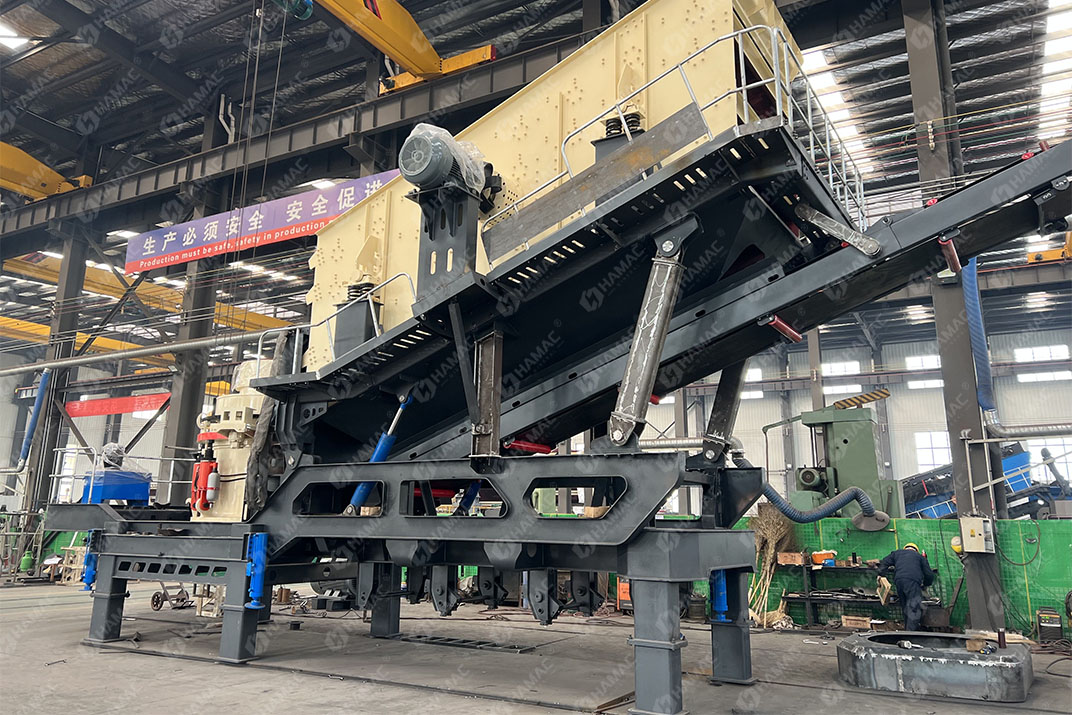

3.Customer can choose independent operation and combination operation easily by upgrading the main crushers and vibrating screen on the mobile trailer;
The 1200-1300t/h hard rock crushing plant is designed to handle large volumes of tough materials like granite, basalt, and quartz....
Explore the essential equipment and features of a bentonite grinding plant, focusing on operational efficiency and investment retu...
The 500-550t/h soft rock crushing plant is perfect for processing large volumes of soft rock materials like limestone and dolomite...
The 500-550t/h soft rock crushing plant is designed for efficient processing of materials like limestone, gypsum, and dolomite. Eq...
The 250-300t/h soft rock crushing plant is designed to process soft rock materials like limestone, gypsum, and dolomite. It is a r...
Explore the essential equipment and features of a gypsum grinding plant, focusing on operational efficiency and investment return.
This 150-180tph stationary crushing and screening plant was installed in 2009. In the spring festival holiday, this client called ...
Discover the advanced 250tph granite crusher plant in the Philippines by HAMAC Industrial Technology Group. This state-of-the-art ...
This mobile crushing and screening plant was exported to Chile in 2012. It is a complete mobile crusher and vibrating screens on t...
This 150tph stationary crushing and screening plant was installed in 2011 in Iraq. It was installed in a mountain valley. Up to no...
Discover the HMAC Industrial Technology Group's 1500t/d gold ore processing plant in Tanzania. This project leverages state-of-the...
This mobile crushing and screening plant was exported to Algeria in 2013. It is a complete mobile crusher and vibrating screens on...
| Model | MC75 | MC160 | MC300 |
|---|---|---|---|
| Transportation Length | 14000 mm | 14500 mm | 14500 mm |
| Transportation Width | 3100 mm | 3100 mm | 3100 mm |
| Transportation Height | 4300 mm | 4500 mm | 4500 mm |
| Weight | 38.2 t | 49.5 t | 43 t |
| Axles | Double | Double | Three |
| Cone Crusher | 3FT | 4.25FT | HP300 |
| Belt Conveyor for Discharging | B650×7M | B800×7.5M | B800×7.5M |
| Belt Conveyor for Return Material 1# | B650×9.5M | B800×9.5M | B800×9.5M |
| Belt Conveyor for Return Material 2# | B650×5M | B800×6M | B800×6M |
| Belt Conveyor Under Screen | B800×6M | B800×8.5M | B800×7M |
| Vibrating Screen | 3YZS1848 | 3YZS1854 | 3YZS1854 |
