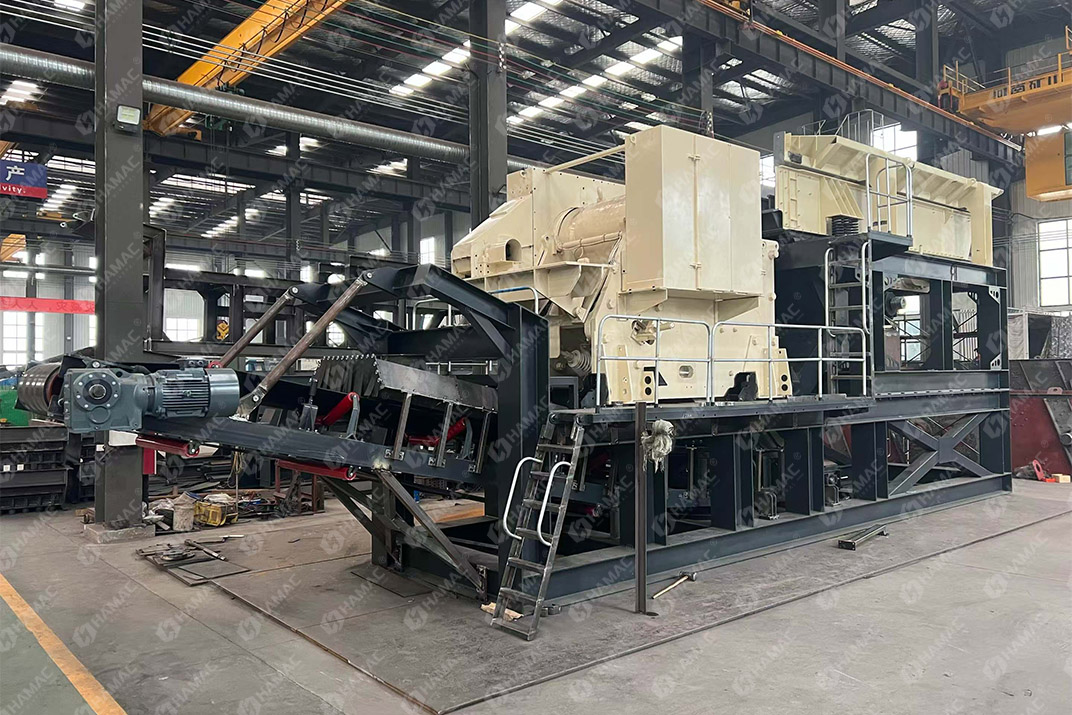

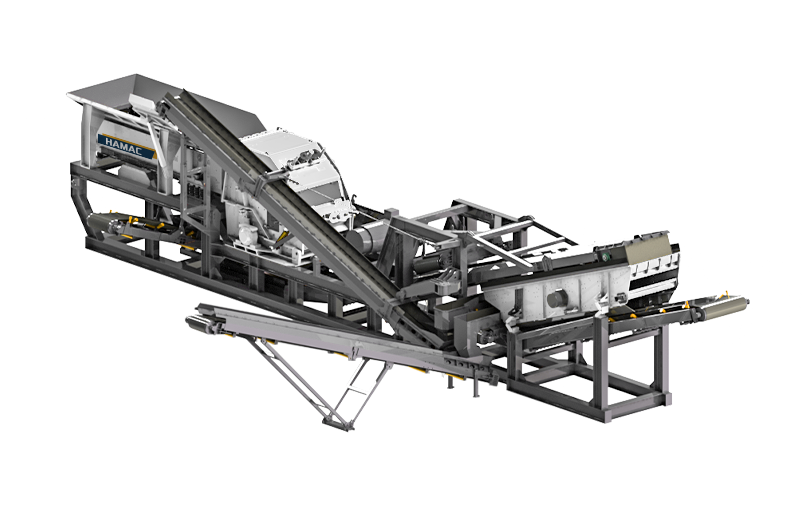

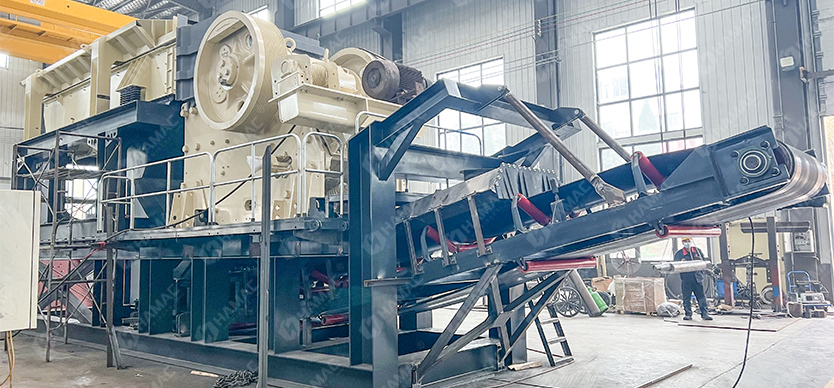

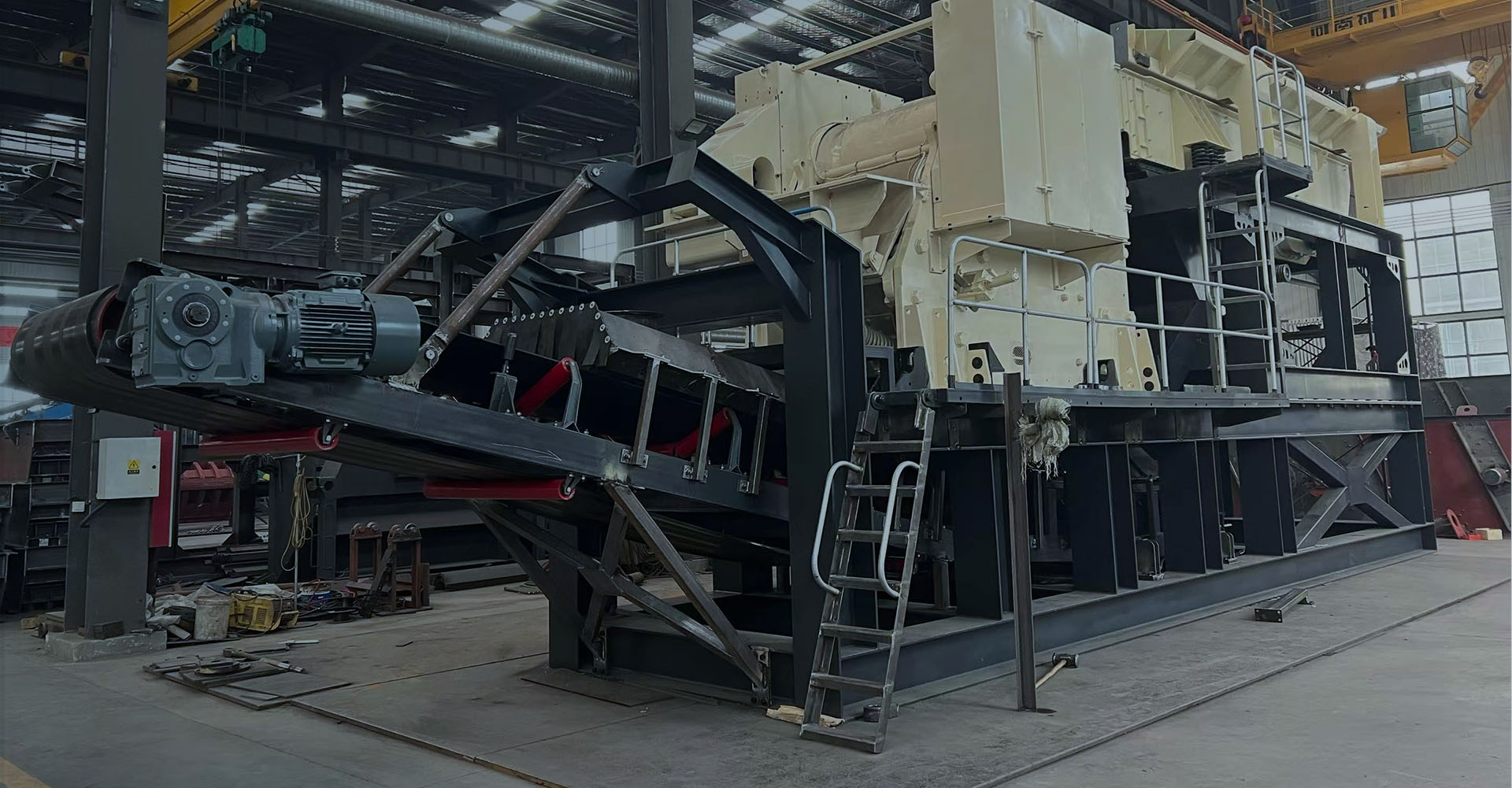

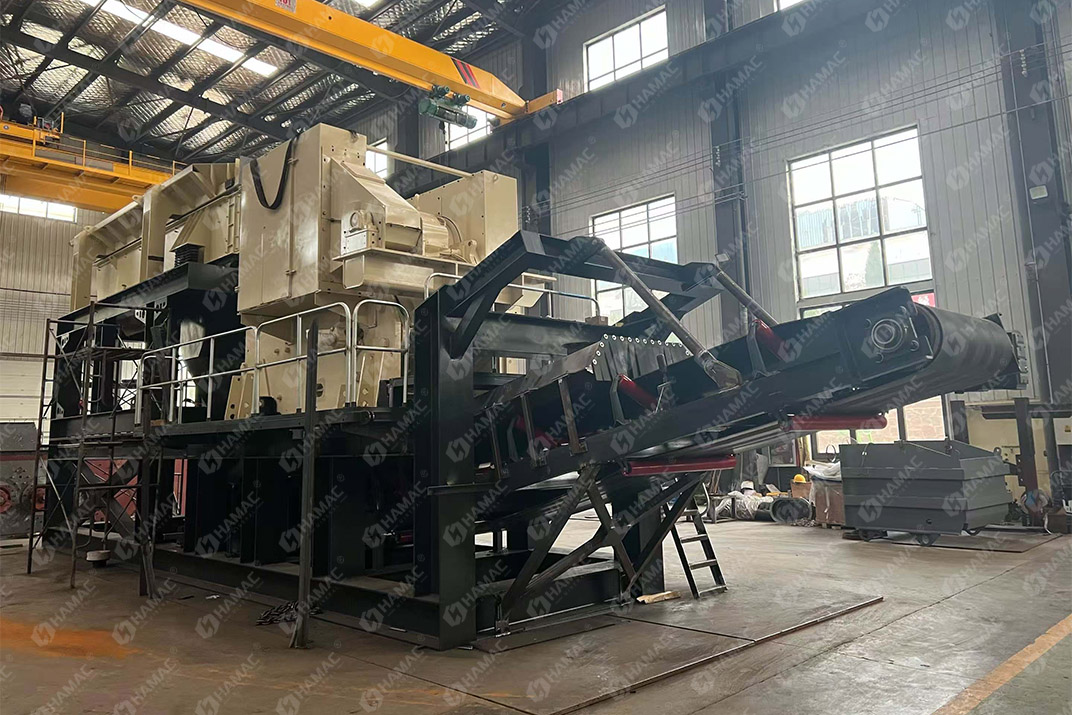

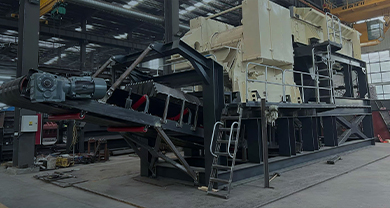

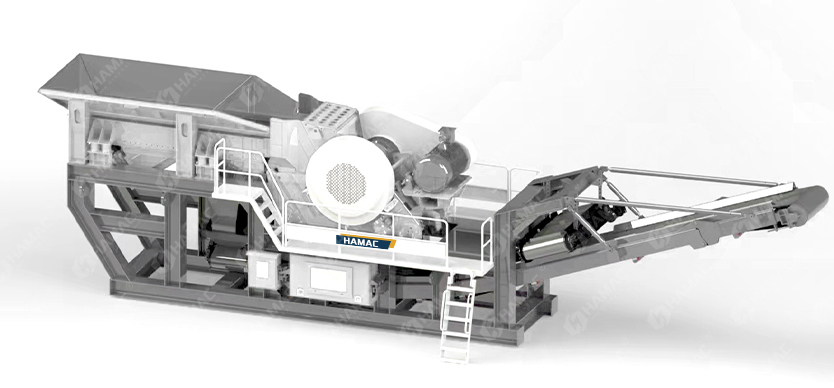

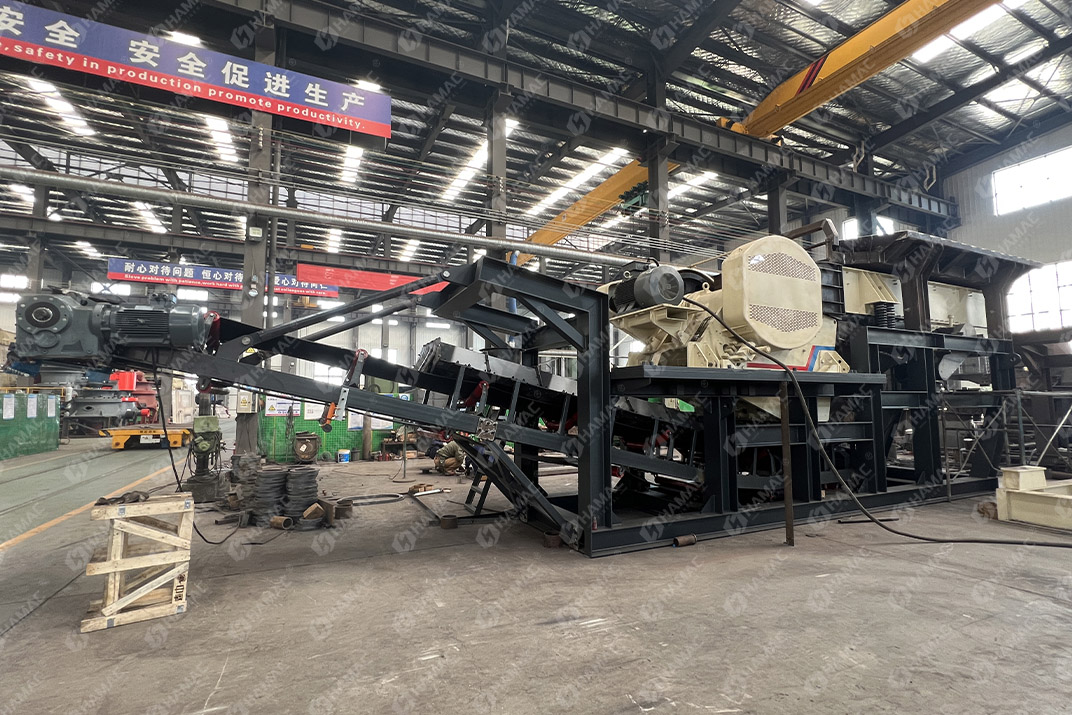

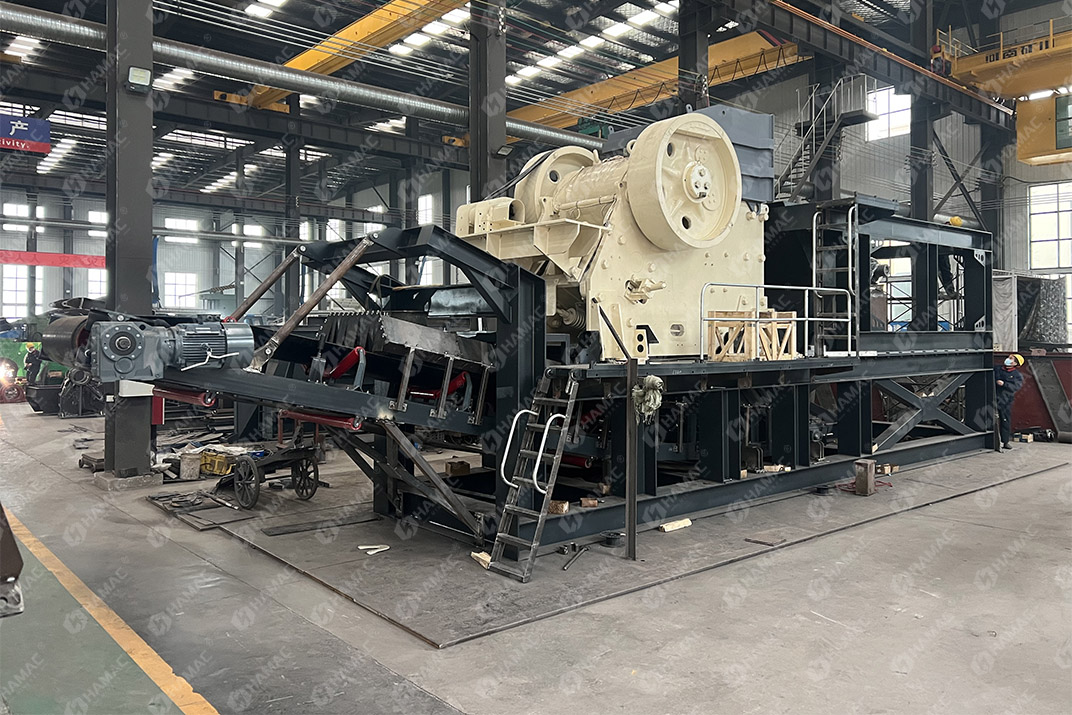

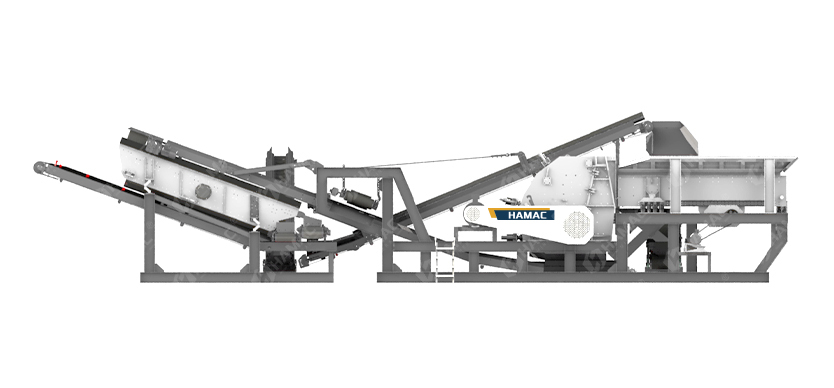

HAMAC provides over 20 pre-designed, ready-to-run modular crushing plants with capacities up to 400 tph, ensuring quick production start-up. These solutions save installation time and are easily movable between sites. Whether you need a simple or complex setup, with one or three crushing stages, HAMAC offers tailored configurations for optimal performance. Designed for controlled budgets and timely delivery, these plants maximize your investment return. Every HAMAC solution comes with a full warranty, ensuring reliability and peace of mind.
Most types of rocks, metallic ores, and other minerals, such as limestone, granite, marble, basalt, iron ore, copper ore, and more.
Popular in aggregates, highway construction, railway construction, airport building, and several other industries.
1.Compact design, all the machines are installed on the steel structure to save space;
2.Save time for installation, it does not need a foundation. It can start working as long as it is put on a flat ground;
3.Its cost is much lower than a crawler crusher or a tire type mobile crusher;
4.It can be disassembled and put into container for shipping, it save the sea freight cost much;
5.Different options can be provided for different solutions;
Explore the essential equipment and features of an iron ore crushing plant, focusing on operational efficiency and investment retu...
Explore the essential equipment and features of a bauxite grinding plant, focusing on operational efficiency and investment return...
The 500-550t/h soft rock crushing plant is perfect for processing large volumes of soft rock materials like limestone and dolomite...
The 200-250t/h soft rock crushing plant is designed to efficiently process materials like limestone, gypsum, and dolomite. With an...
The 100-150t/h soft rock crushing plant offers an efficient and cost-effective solution for medium-scale aggregate production. Des...
In the competitive world of quarry operations and metal ore refining, having a reliable and efficient crushing plant is essential....
This mobile crushing and screening plant was exported to Guinea in 2012. It is a complete mobile crusher and vibrating screens on ...
This 250tph stationary aggregate crushing and screening plant as delivered to South Sudan in 2011. It is a project which was inves...
This 150tph stationary crushing and screening plant was installed in 2011 in Iraq. It was installed in a mountain valley. Up to no...
This mobile crushing and screening plant was exported to Algeria in 2013. It is a complete mobile crusher and vibrating screens on...
| Item | HMC-C96 | HMC-C106 | HMC-C110 |
|---|---|---|---|
| Main machine model | 6CX96 | 6CX106 | 6CX110 |
| Main belt conveyor | B800*9М | B1000*9М | B1200*9М |
| Feeding capacity | 300 t/h | 430 t/h | 600 t/h |
| Max. feeding size | 600 mm | 650 mm | 680 mm |
| Capacity | 100-330 t/h | 140-420 t/h | 170-600 t/h |
| Adjusting range of discharge opening | 70-200 mm | 70-200 mm | 80-200 mm |
| Jaw crusher power | 90 kW | 110 kW | 130 kW |
| Whole machine power | 115.5 kW | 137.5 kW | 164.5 kW |
| Transportation dimension (L×W×H) | 13000×5300×3950 mm | 14000×5300×3950 mm | 15000×6000×4300 mm |
| Item | HMC-S1548 | HMC-S1860 | HMC-S2160 |
|---|---|---|---|
| Model | HMC-S1548 | HMC-S1860 | HMC-S2160 |
| Model of vibrating screen | YK1548 | YK1860 | YK2160 |
| Screen size | 1500×4800 mm | 1800×6000 mm | 2100×6000 mm |
| Main belt conveyor | 1000×12000 mm | 1000×12500 mm | 1000×12500 mm |
| Capacity | 80-200 t/h | 120-300 t/h | 160-400 t/h |
| Whole machine power | 50 kW | 65 kW | 72 kW |
| Transportation dimension (L×W×H) | 14500×3500×3850 mm | 14500×3800×3850 mm | 14500×4100×3800 mm |
