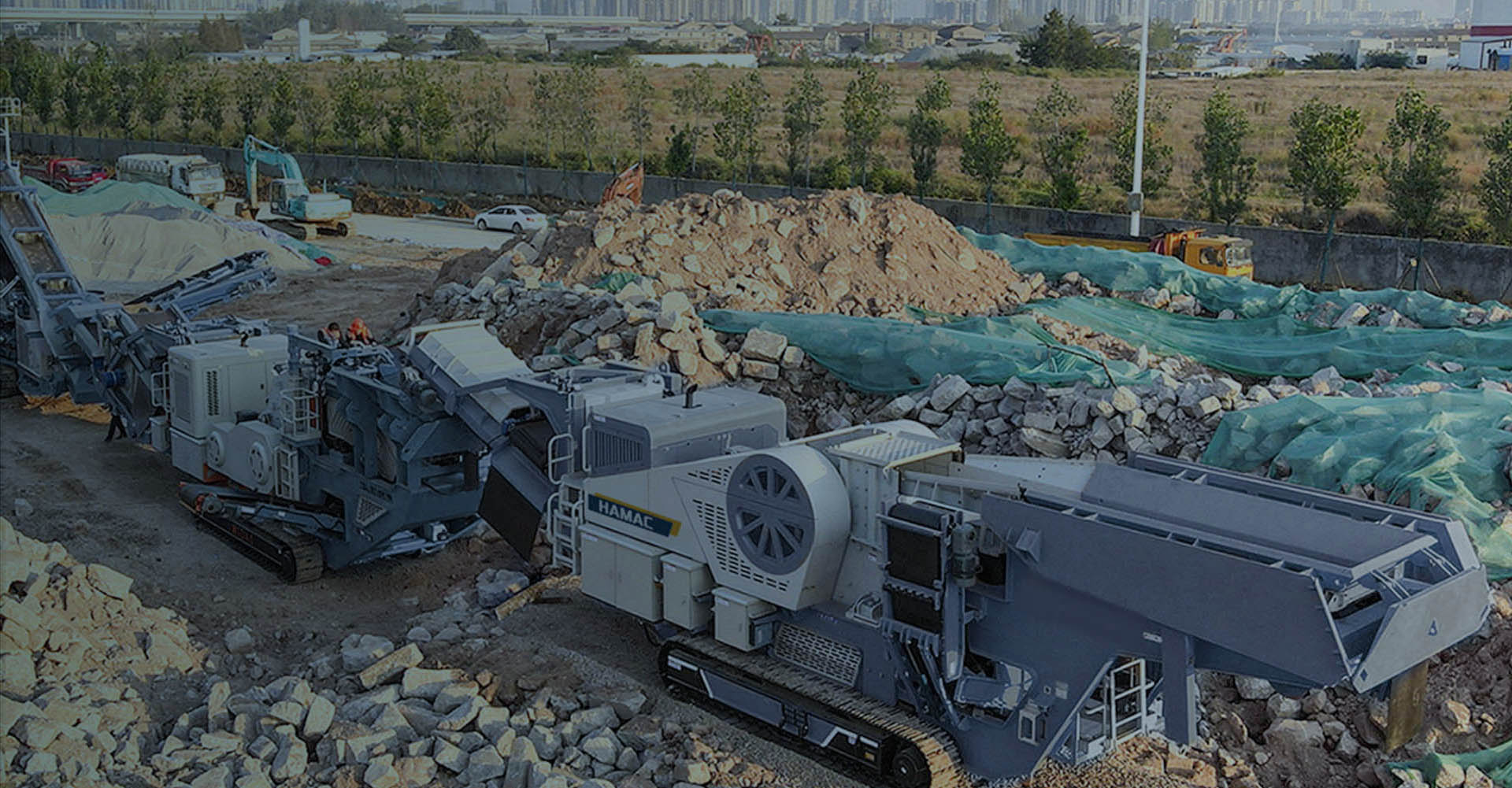

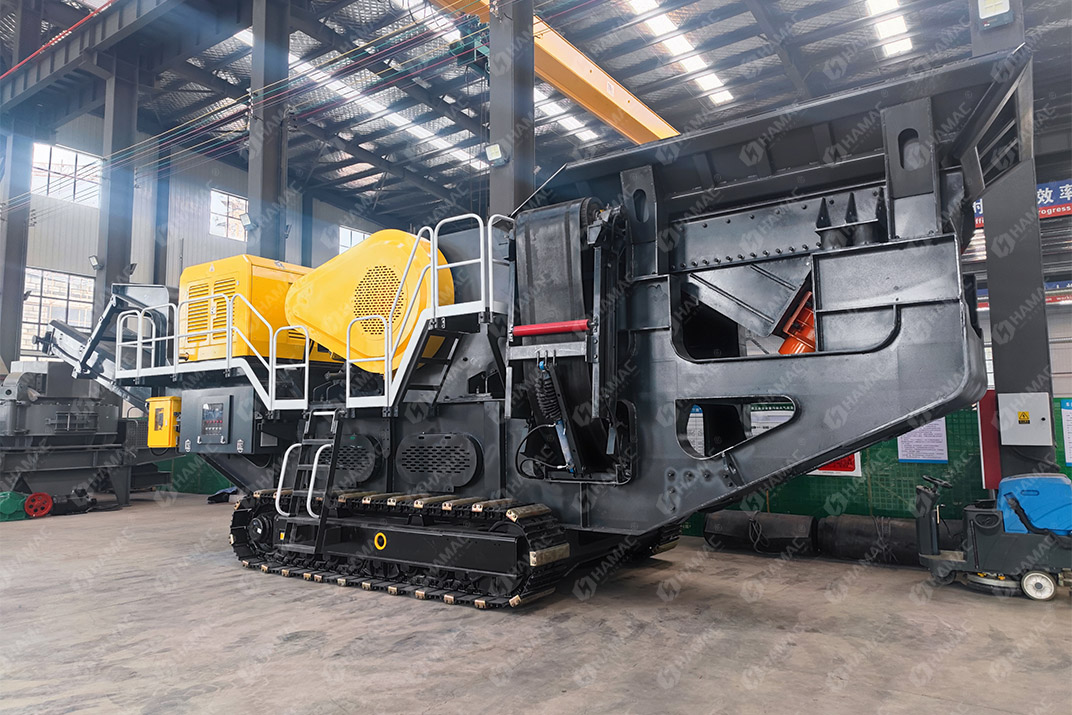

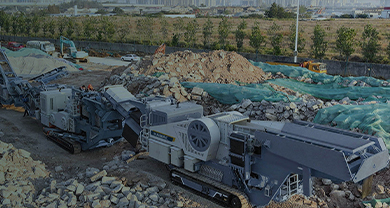

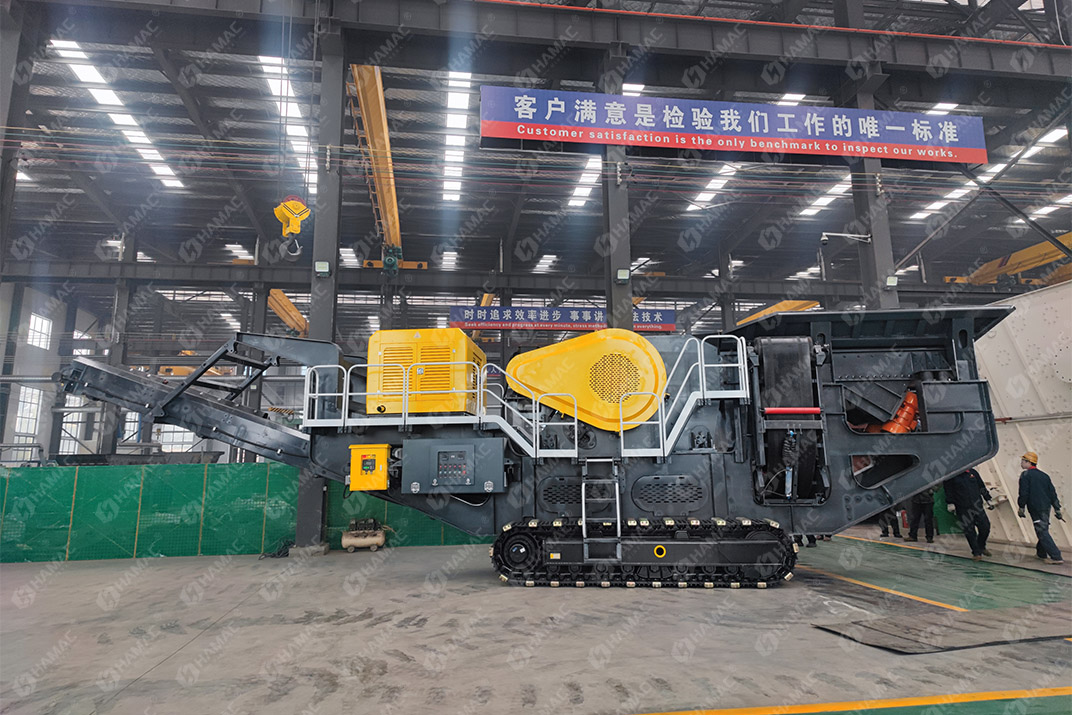

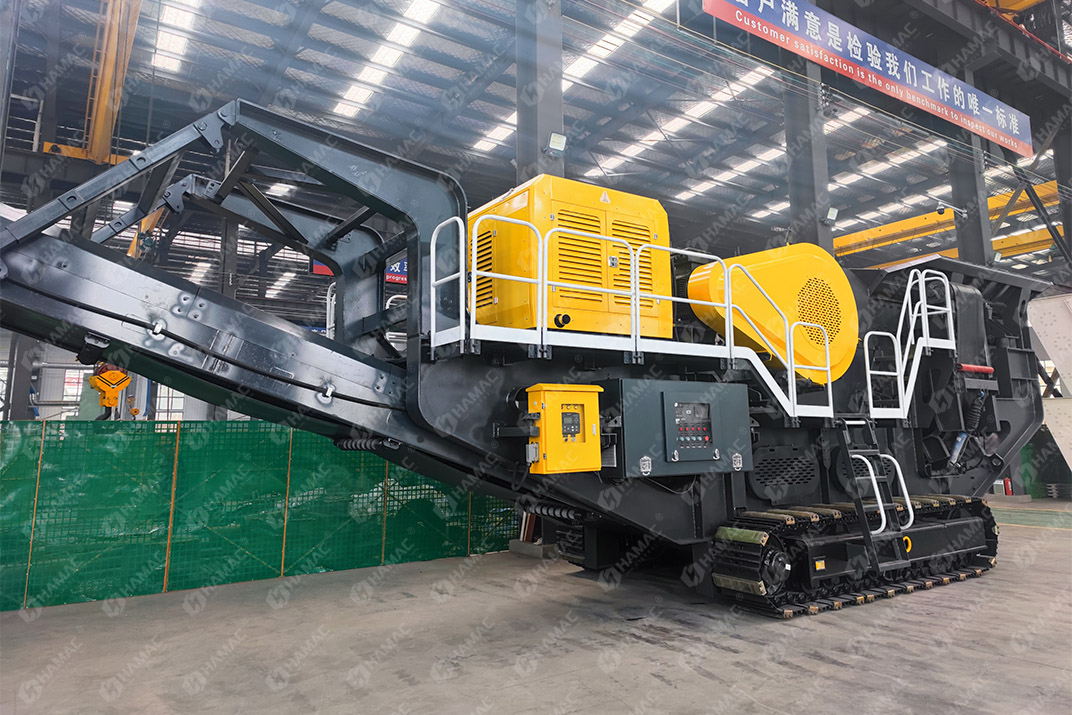

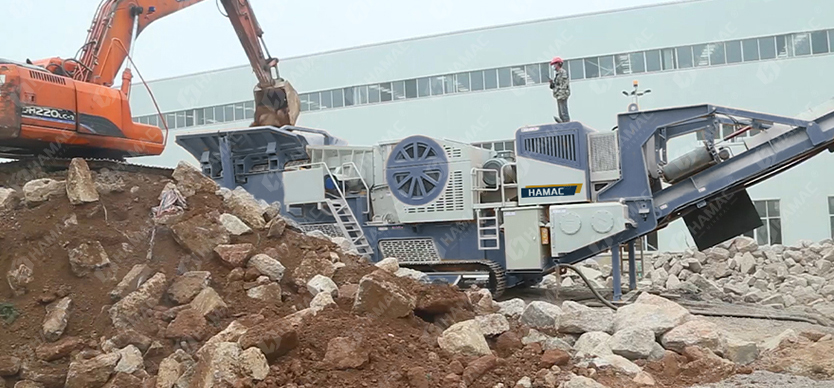

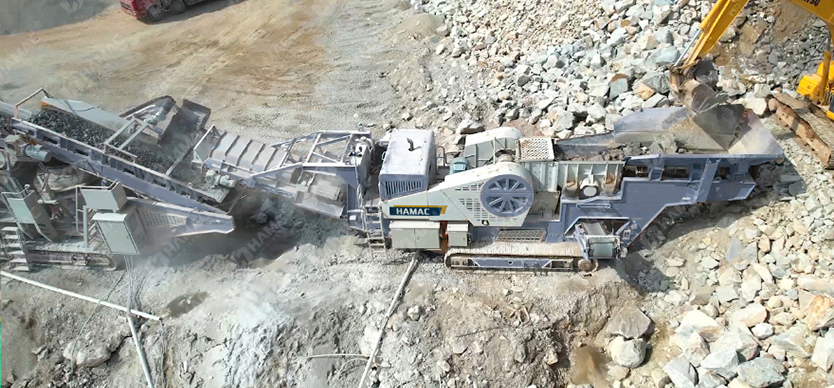

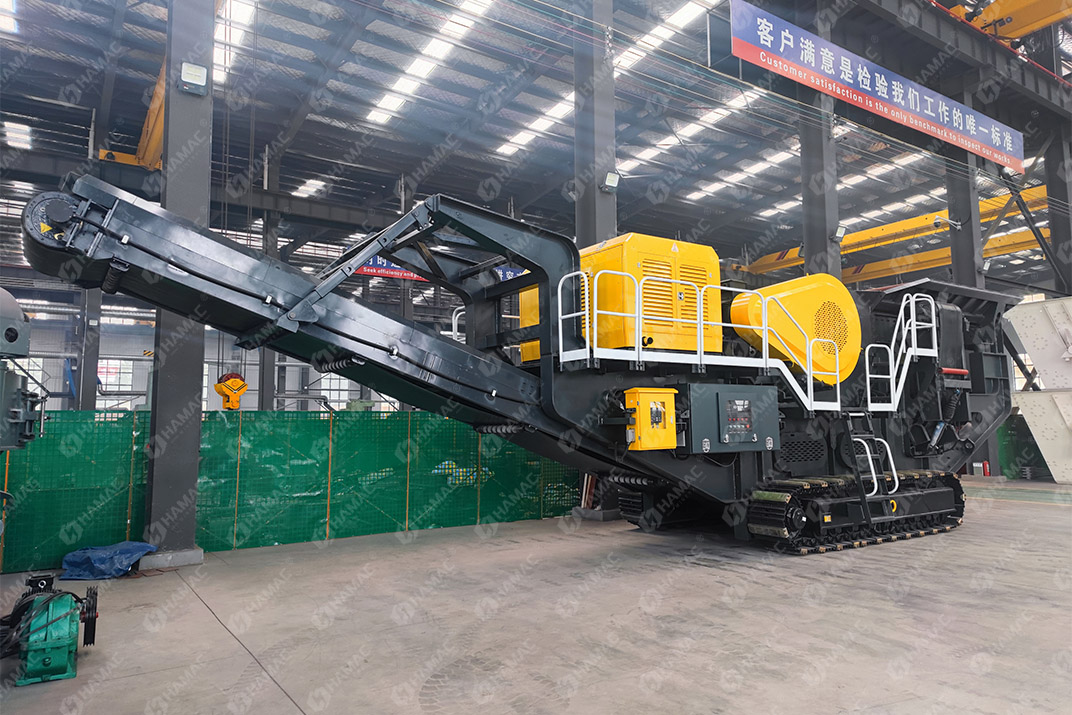

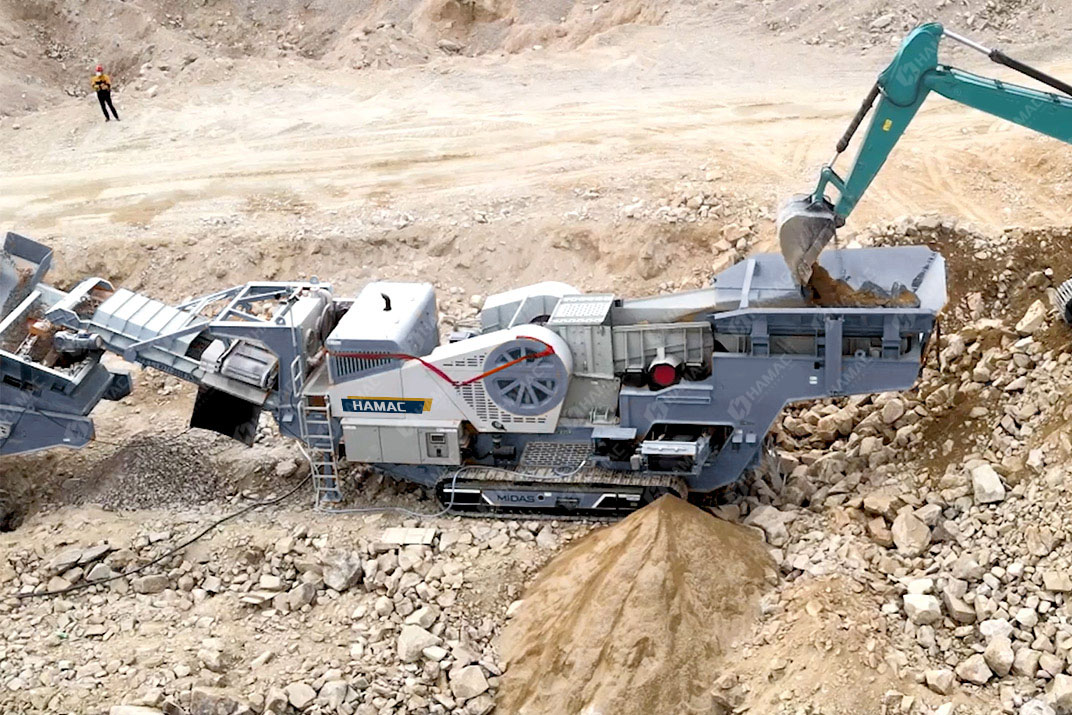

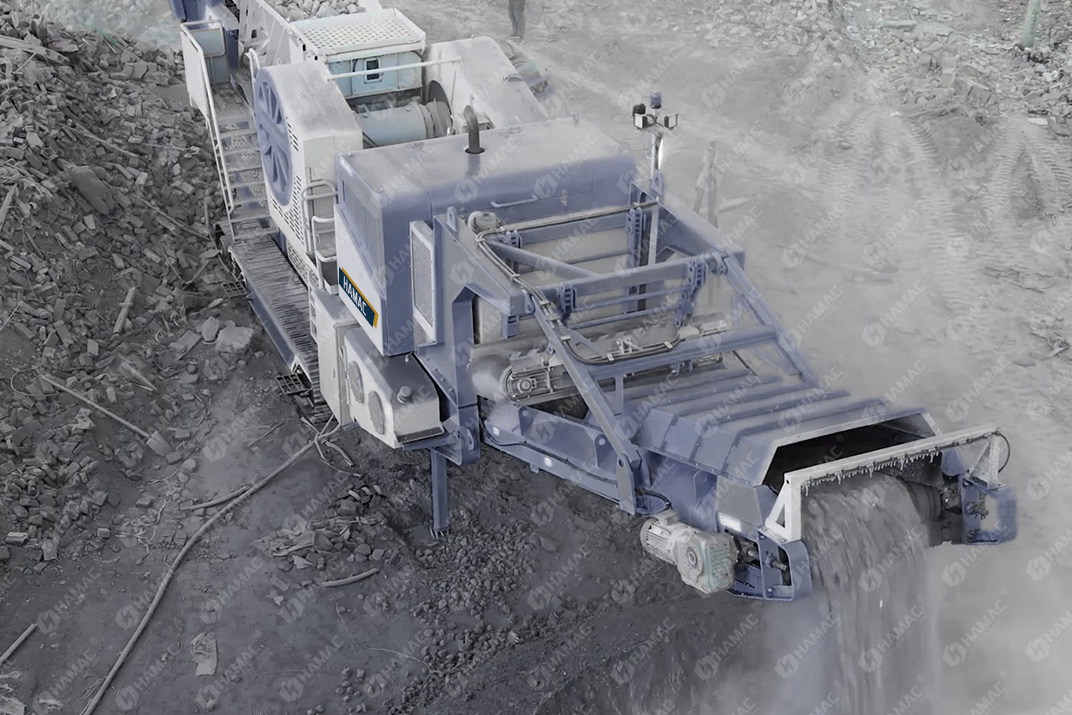

HMC series tracked mobile crushers are widely used in aggregates production and recycling applications globally. Their track-mounted design allows for easy movement on-site and between sites, enhancing flexibility. Often called 'mobile crushing plants,' these machines boost productivity, lower operating costs, improve safety, and reduce environmental impact. Mobile crushers offer complete mobility, even on steep slopes up to a 1:10 incline, making them ideal for diverse operational needs.
Processing capacity : 80-570（T/H）
Main machine power : 106.3-149.8（KW）
Most types of rocks, metallic ores, and other minerals, such as limestone, granite, marble, basalt, iron ore, copper ore, and more.
Popular in aggregates, highway construction, railway construction, airport building, and several other industries.
Tracked crusher and screens are used widely in the world for different projects as below:
1. Widely used in mines, coal mines, recycling of garbage and construction waste, earthwork engineering, urban infrastructure, roads or construction sites.
2. Processing of topsoil and other materials; separation of viscous aggregate; construction and blasting industries; screening after crushing; quarrying industry.
Explore the essential equipment and features of a limestone crushing plant, focusing on operational efficiency and investment retu...
The 500-550t/h soft rock crushing plant is perfect for processing large volumes of soft rock materials like limestone and dolomite...
Explore the essential equipment and features of a bauxite grinding plant, focusing on operational efficiency and investment return...
Explore the essential equipment and features of a barite grinding plant, focusing on operational efficiency and investment return.
The limestone grinding plant is designed to process limestone into fine powder, which is essential for various industries such as ...
Learn about the 150t/h hard rock portable crushing plant, designed for efficient mobile crushing. Discover how it maximizes produc...
Discover the 9-11t/h Industrial Solid Waste Powder Production Line by HAMAC Industrial Technology Group. This advanced system inte...
Discover the Vietnam 4t/h Calcium Carbonate Grinding Plant by HAMAC Industrial Technology Group. This project features high-qualit...
This mobile jaw crusher was exported to Oman in 2010. It is our biggest mobile jaw crusher. This client only process the big stone...
Discover the advanced 250tph granite crusher plant in the Philippines by HAMAC Industrial Technology Group. This state-of-the-art ...
This 250tph stationary aggregate crushing and screening plant as delivered to South Sudan in 2011. It is a project which was inves...
This mobile crushing and screening plant was exported to Algeria in 2013. It is a complete mobile crusher and vibrating screens on...
| Model | MJ150SE | MJ260E | MJ-350E | MJ-450SE |
|---|---|---|---|---|
| Feeder | ||||
| Volume(m³) | 4 | 6 | 6 | 6 |
| Feeding height(mm) | 3500 | 4357 | 4357 | 4357 |
| Maximum feed size(mm) | 430 | 560 | 630 | 720 |
| Crusher | ||||
| Host model | MC80 | MC106 | MC113 | MC120 |
| Feed opening(mm) | 800×510 | 1060X700 | 1130×750 | 1200×870 |
| Closed side setting(mm) | 40-175 | 70-200 | 70-200 | 70-200 |
| Conveyor | ||||
| Main conveyor width(mm) | 1000 | 1200 | 1200 | 1200 |
| Stacking height(mm) | 3307 | 3470 | 3470 | 3455 |
| Side conveyor width×height (mm) | 650x2196 | 650x2196 | 650x2196 | 650x2196 |
| Driving mode | Motor reducer drive | Motor reducer drive | Motor reducer drive | Motor reducer drive |
| Power Unit | ||||
| Generator power (kW) | 150KW | 250KW | 250KW | 300KW |
| Diesel tank capacity | 400L | 600L | 600L | 800L |
| Hydraulic tank capacity | 250L | 300L | 300L | 400L |
| Technical Data | ||||
| Total power(kw) | 94.2 | 146.8 | 146.8 | 185.4 |
| Host power(kw) | 75 | 110 | 110 | 160 |
| Processing capacity(t/h) | 55-335 | 150-500 | 160-570 | 175-610 |
| Track speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 |
| Total weight(t) | 34 | 50 | 54 | 58 |
| Transport dimension(mm) | 12500 ×2900 ×3500 | 16354 ×3384 ×3725 | 16042 ×3262 ×3813 | 15038 ×3070 ×3947 |
