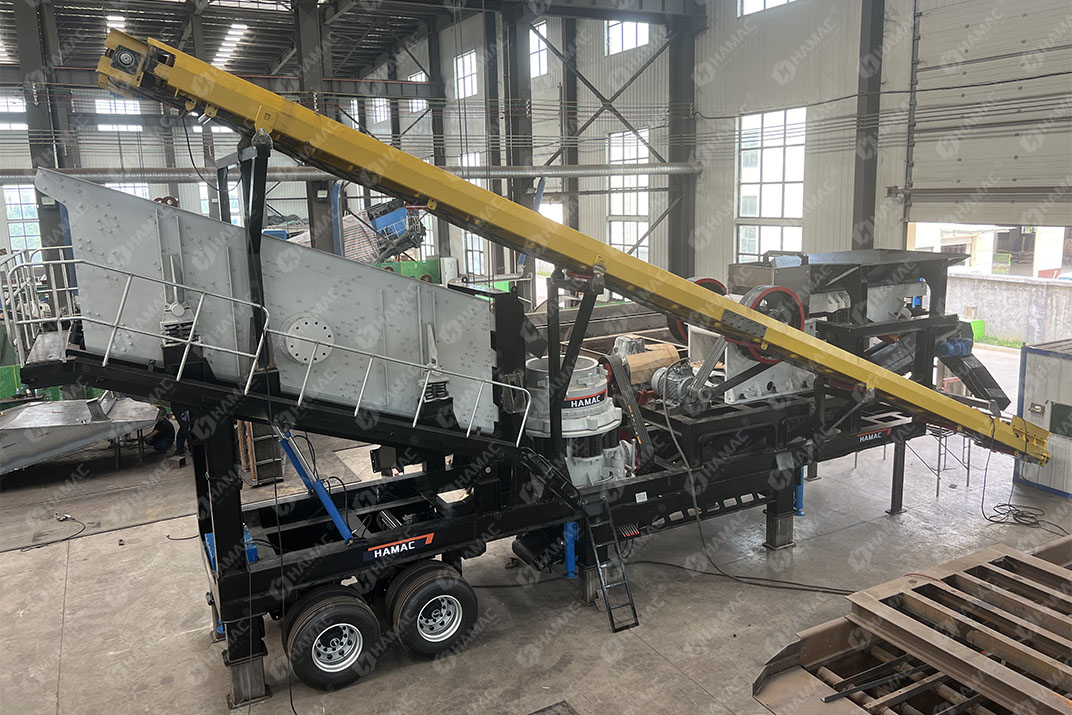

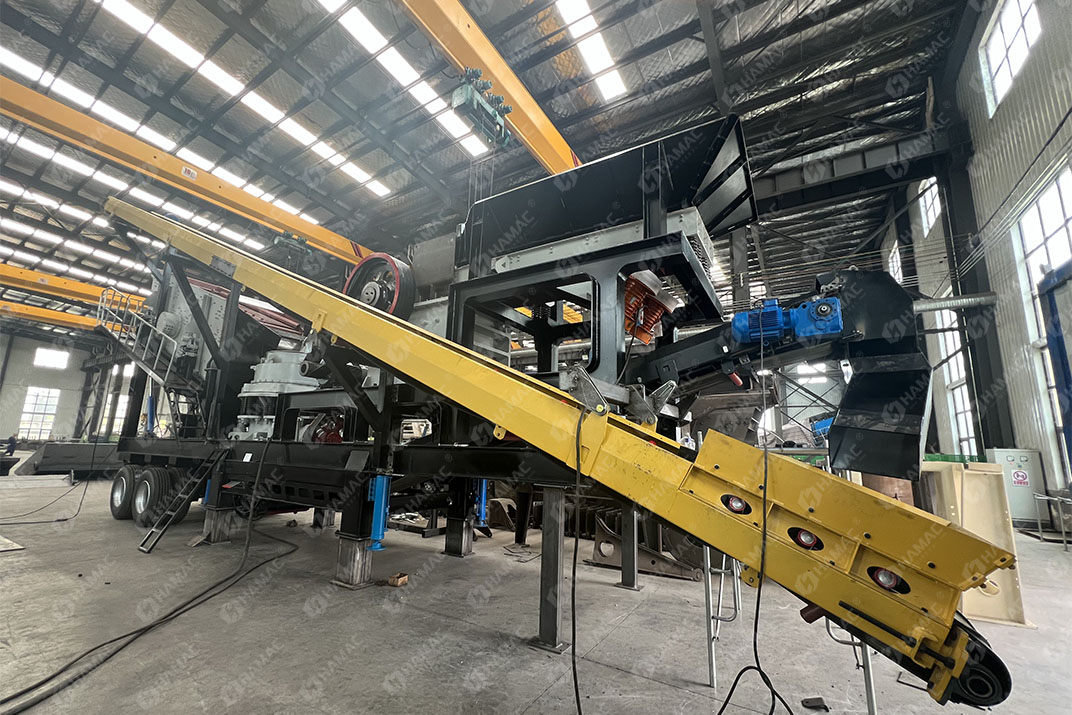

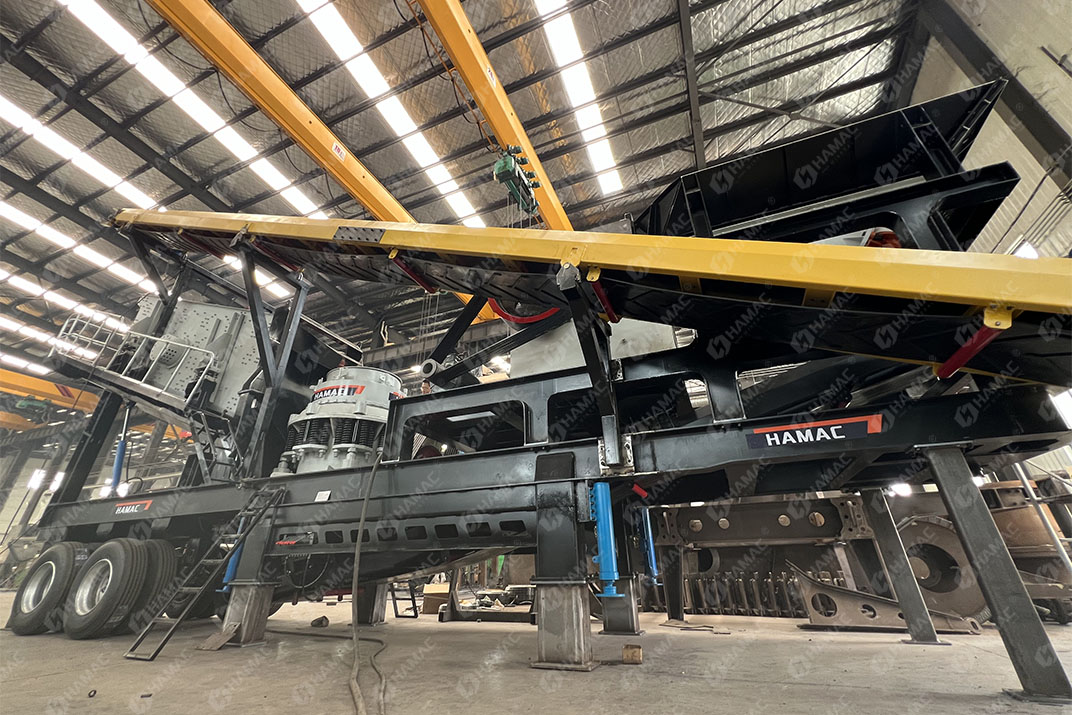

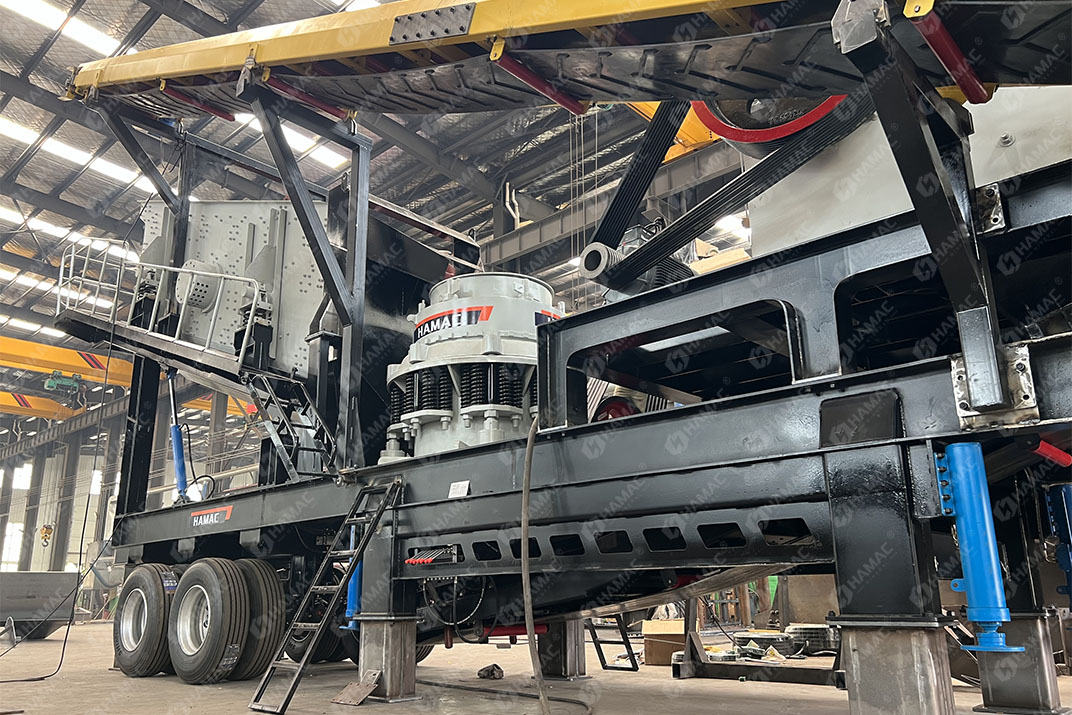

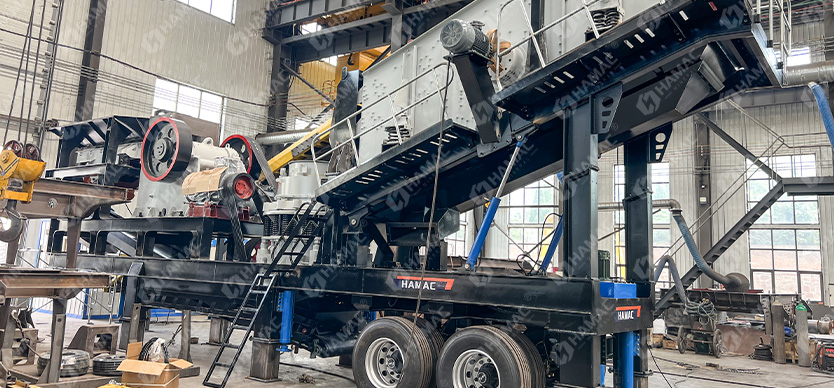

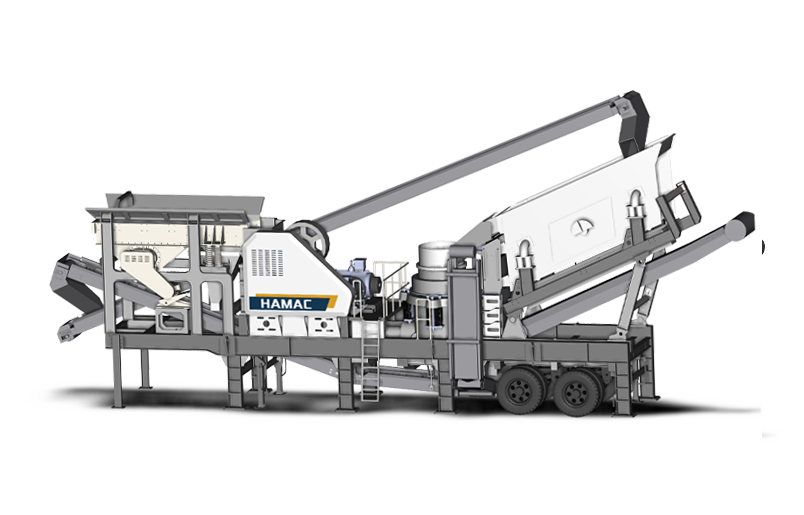

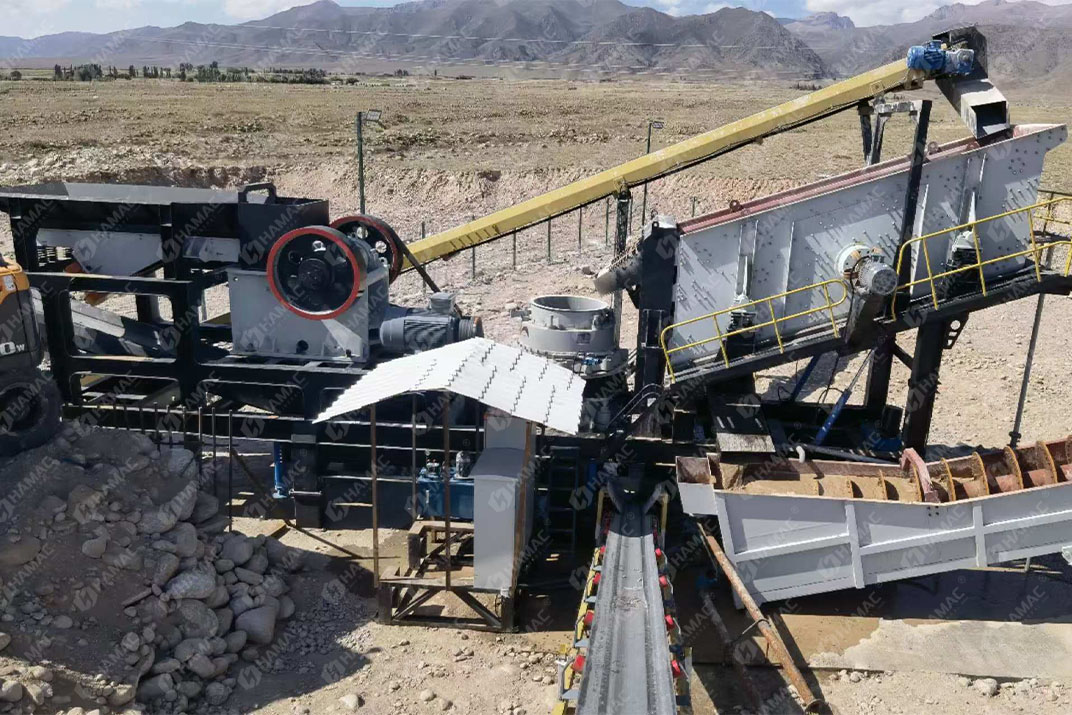

The 4-in-1 Mobile Crushing Plant integrates a vibrating feeder, jaw crusher, cone/impact crusher, and vibrating screen in one frame, ensuring high efficiency and flexibility. With a capacity of 40t/h to 100t/h, it’s perfect for diverse mobile projects. Its compact design, economical price, and ease of operation make it a top choice. Our engineers can tailor the plant to your specific capacity and output size needs, delivering optimal performance for your crushing requirements. Ideal for on-site operations, it combines convenience and productivity seamlessly.
Most types of rocks, metallic ores, and other minerals, such as limestone, granite, marble, basalt, iron ore, copper ore, and more.
Popular in aggregates, highway construction, railway construction, airport building, and several other industries.
1.Compact design, 4 machines with different functions in 1 chassis;
2.Save cost for initial investment;
3.Different crushers as options for different hardness stone crushing;
4.Save time for installation, you can assembly it directly and start working;
Explore the essential equipment and features of a basalt crushing plant, focusing on operational efficiency and investment return.
The 150-200t/h soft rock crushing plant offers efficient solutions for processing materials like limestone and shale. With optimiz...
Explore the essential equipment and features of a bauxite grinding plant, focusing on operational efficiency and investment return...
The 650-750t/h hard rock crushing plant is designed for high-demand mining and construction operations, offering top-tier performa...
The 50-100t/h hard rock crushing plant from HAMAC is primarily composed of a jaw crusher, cone crusher, vibrating screen, and vibr...
The limestone grinding plant is designed to process limestone into fine powder, which is essential for various industries such as ...
This mobile crushing and screening plant was exported to Algeria in 2013. It is a complete mobile crusher and vibrating screens on...
Discover the advanced 250tph granite crusher plant in the Philippines by HAMAC Industrial Technology Group. This state-of-the-art ...
This 150-180tph stationary crushing and screening plant was installed in 2009. In the spring festival holiday, this client called ...
This mobile crushing and screening plant was exported to Guinea in 2012. It is a complete mobile crusher and vibrating screens on ...
Russia is endowed with vast mineral resources, including significant copper deposits. The establishment of a modern copper ore cru...
The manganese ore crushing plant was established in 2023 by a leading mining company aiming to enhance its manganese production ca...
| Model | Vibrating Feeder | Jaw Crusher | Cone Crusher / Impact Crusher | Vibrating Screen |
|---|---|---|---|---|
| Y3SY9E46 | GZD850×3000 | PE400×600 | PYB900 | 3YZS1237 |
| Y3SC75E57 | GZD850×3000 | PE500×700 | 3FT | 3YZS1548 |
| Y3SF1210E57 | GZD850×3000 | PE500×700 | PF1210 | 3YZS1548 |
| Y2SY9E57 | GZD850×3000 | PE500×700 | PYB900 | 2YZS1237 |
| Y3SF1010E46 | GZD850×3000 | PE400×600 | PF1010 | 3YZS1237 |
| Model | Capacity | Dimension | Weight | Power |
|---|---|---|---|---|
| Y3SY9E46 | 40-50 t/h | 15×2.5×4.5 m | 42 T | 115 kW |
| Y3SC75E57 | 60-80 t/h | 16.5×3×4.5 m | 58 T | 160 kW |
| Y3SF1210E57 | 60 t/h | 16.5×3×4.5 m | 58 T | 150 kW |
| Y2SY9E57 | 40-50 t/h | 15×2.5×4.5 m | 47 T | 130 kW |
| Y3SF1010E46 | 40-50 t/h | 15×2.5×4.5 m | 42 T | 115 kW |
