150tph stationary crushing and screening plant in Iraq

This 150tph stationary crushing and screening plant was installed in 2011 in Iraq within a mountain valley. To date, it still operates smoothly. This client annually purchases spare parts such as blow bars, jaw plates, liners, screen meshes, and rollers for the belt conveyors. It represents a thriving business in the area, with almost all aggregates supplied by this client.

PE750X1060 jaw crusher & PF1315 impact crusher

3YK2160 vibrating screen and belt conveyors

Detailed information of this stationary crushing and screening plant

• Raw material: Limestone, calcium carbonate
• The maximum feeding size: 630mm; the jaw crusher is PE750*1060;
• Secondary crusher: PF1315 impact crusher;
• The vibrating screen: YK2160, 3 layers screen mesh;
• The output size: 0-10mm, 10-20mm, 20-40mm,
• Nominal capacity: 150t/h;

Brief Introduction of Jaw Crusher and Impact Crusher

Jaw crushers are often used for primary crushing in mineral processing. They are suitable for aggregate crushing in highways, railways, airport runways, and other engineering constructions. The jaw crusher produced by HAMAC adopts new crushing technology and manufacturing standards, making it an ideal product for crushing hard and highly abrasive materials. Compared to traditional jaw crushers, the HAMAC jaw crusher excels in service life, maintenance rate, and failure rate.

Impact crushers are typically used as secondary crushers for less hard materials like limestone, barite, and construction waste. Composed of a casing body, rotor, and impact plate, these crushers use impact energy to crush materials. The crushed aggregates have a cubical shape without tension or cracks, exhibiting good roundness. The discharge particle size can be adjusted, offering diversified crushing specifications. They are widely applied in hydropower, highway, artificial sand production, and gravel industries.

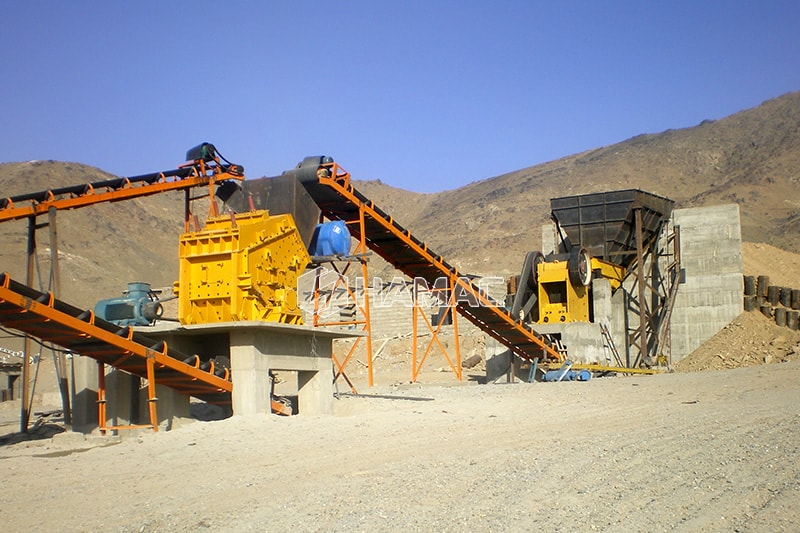

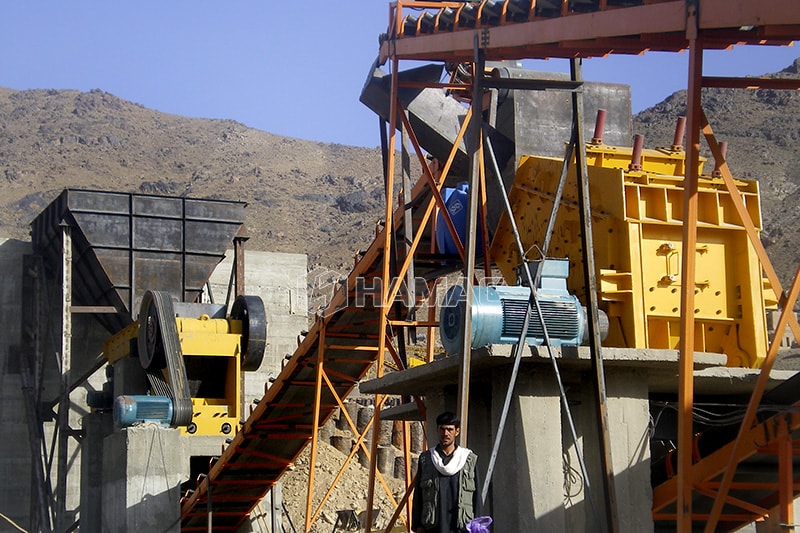

Jaw crusher and impact crusher in Iraq

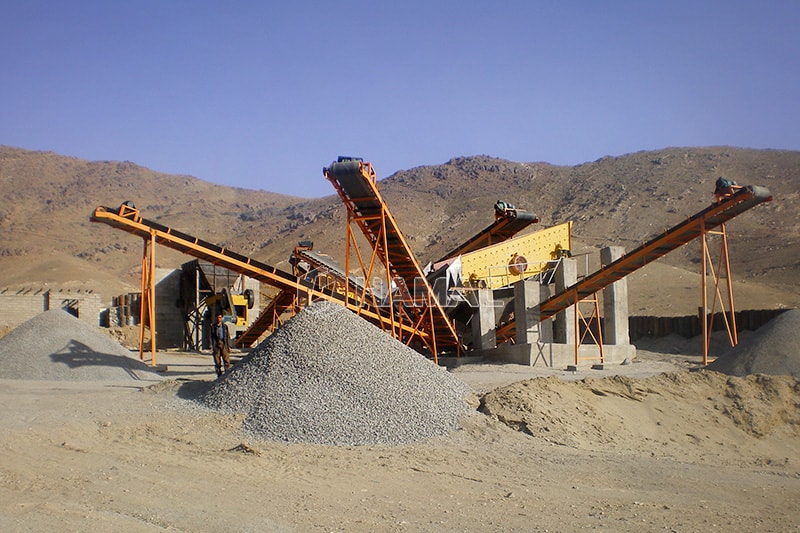

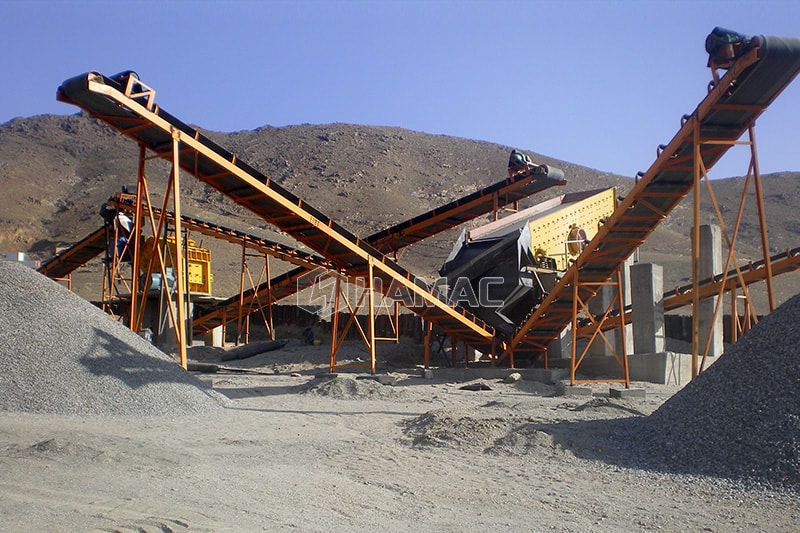

Output of crushers and screen

Our expert will recommend you the perfect solution after you provide the detailed technical information we require. We will provide you with layout drawings, design ideas and quotation lists. Hope we can have a cooperation as well.
