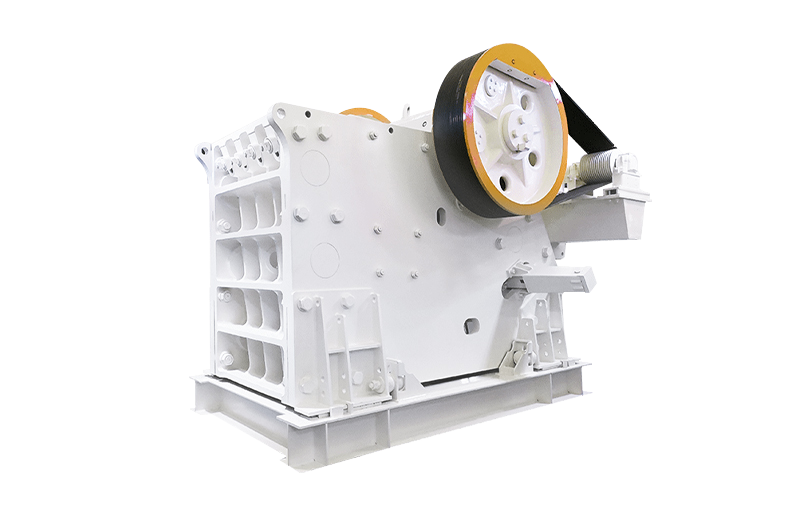

The European Tech. jaw crusher employs advanced international crushing technology, designed for high-efficiency processing of hard, abrasive materials. It is widely used in metallurgy, mining, chemical, cement, construction, and ceramics industries for medium and fine crushing of ores and rocks. HAMAC's European Tech. jaw crusher features enhanced design, high-strength materials, and cutting-edge technology. It offers superior structural strength, reliability, crushing ratio, capacity, extended service life, and reduced overall costs, making it a cost-effective and durable solution for demanding applications.
PCapacity : ≤ 650t/h
Motor Power : 55-450kw
Most types of rocks, metallic ores, and other minerals, such as limestone, granite, marble, basalt, iron ore, copper ore, and more.
Popular in aggregates, highway construction, railway construction, airport building, and several other industries.

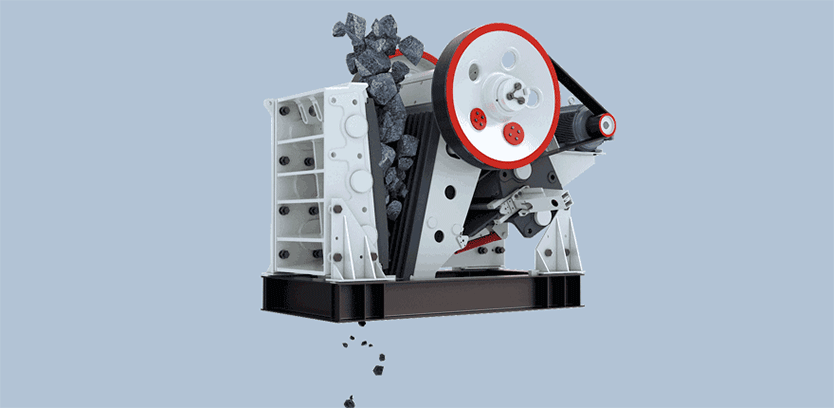

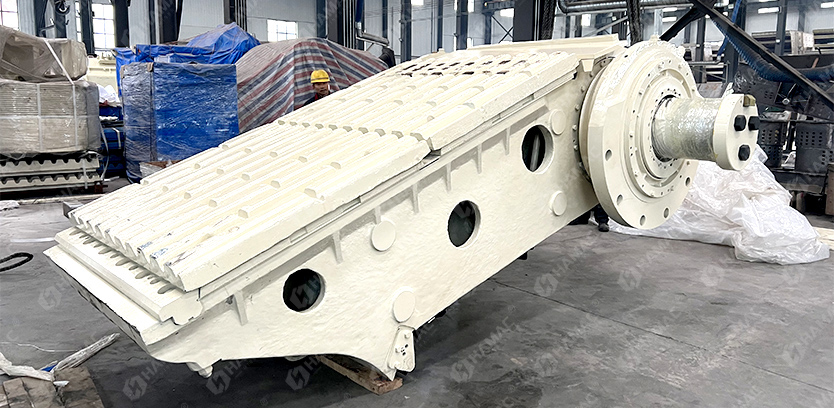

The European type jaw crusher is mainly composed of a crusher body, eccentric shaft rotating part, crushing chamber, safety device, discharge opening adjustment device, etc. The crushing method of the European Tech. jaw crusher is a flexural extrusion type. The motor drives the belt and pulley, and the mobile jaw swings forward and backward and up and down through the eccentric shaft. When the mobile jaw pushes the mobile jaw plate to move toward the stationary jaw plate, the material is crushed. When the mobile jaw and the mobile jaw plate retreat under the action of the eccentric shaft and the spring, the previously crushed material is discharged from the lower discharge opening of the jaw plate. As the motor rotates continuously, the mobile jaw of the crusher periodically crushes and discharges the material, realizing mass production.
The 100-150t/h soft rock crushing plant offers an efficient and cost-effective solution for medium-scale aggregate production. Des...
The 450-550t/h hard rock crushing plant is designed for large-scale projects, offering high capacity, exceptional reliability, and...
Explore the essential equipment and features of a basalt crushing plant, focusing on operational efficiency and investment return.
The 750-900t/h hard rock crushing plant is designed for large-scale mining and construction projects. With unparalleled processing...
Discover the benefits of the 200t/h soft rock portable crushing plant. Learn how its mobile design enhances flexibility, increases...
Explore the essential equipment and features of a lead-zinc ore crushing plant, focusing on operational efficiency and investment ...
This 150tph stationary crushing and screening plant was installed in 2011 in Iraq. It was installed in a mountain valley. Up to no...
Discover the Vietnam 4t/h Calcium Carbonate Grinding Plant by HAMAC Industrial Technology Group. This project features high-qualit...
This mobile crushing and screening plant was exported to Guinea in 2012. It is a complete mobile crusher and vibrating screens on ...
Discover the advanced 250tph granite crusher plant in the Philippines by HAMAC Industrial Technology Group. This state-of-the-art ...
The manganese ore crushing plant was established in 2023 by a leading mining company aiming to enhance its manganese production ca...
Russia is endowed with vast mineral resources, including significant copper deposits. The establishment of a modern copper ore cru...
| Model | Feed opening | Motor Power | Rotation speed | Jaw plate length | Max single part weight | Total weight |
|---|---|---|---|---|---|---|
| 6CX80 | 800×510 mm | 75 kW | 350 rpm | 1100 mm | 2870 kg | 7520 kg |
| 6CX96 | 930×580 mm | 75(90) kW | 300 rpm | 1380 mm | 4500 kg | 12000 kg |
| 6CX106 | 1060×700 mm | 110 kW | 280 rpm | 1450 mm | 7800 kg | 19000 kg |
| 6CX110 | 1100×850 mm | 132(160) kW | 230 rpm | 1800 mm | 9000 kg | 25060 kg |
| 6CX125 | 1250×950 mm | 160(132) kW | 220 rpm | 2000 mm | 12960 kg | 36700 kg |
| 6CX140 | 1400×1070 mm | 200(160) kW | 220 rpm | 2100 mm | 15950 kg | 45300 kg |
| 6CX145 | 1400×1100 mm | 200 kW | 220 rpm | 2300 mm | 18600 kg | 53800 kg |
| 6CX160 | 1600×1200 mm | 250(200) kW | 220 rpm | 2500 mm | 21380 kg | 68600 kg |
