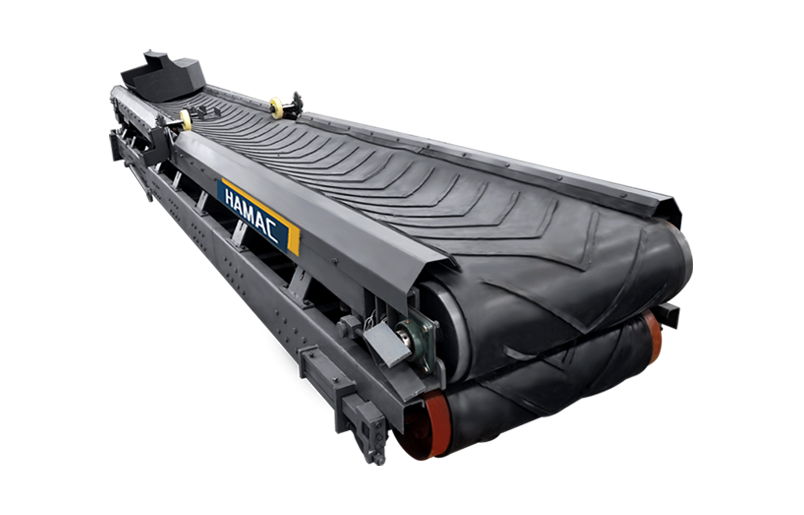

Based on more than 20 years’ experience on mining and construction, HAMAC knows how to design a belt conveyor which is more suitable for crushing and screening plant. Belt conveyor which is manufactured by HAMAC with features include simple structure, convenient maintenance and standardized components. The length and assembly form can be determined according to user requirements. The transmission can be an electric roller or a drive device with a drive frame.
Capacity : ≤1000t/h
Working speed : 1.2-2m/s
Most types of rocks, metallic ores, and other minerals, such as limestone, granite, marble, basalt, iron ore, copper ore, and more.
Popular in aggregates, highway construction, railway construction, airport building, and several other industries.

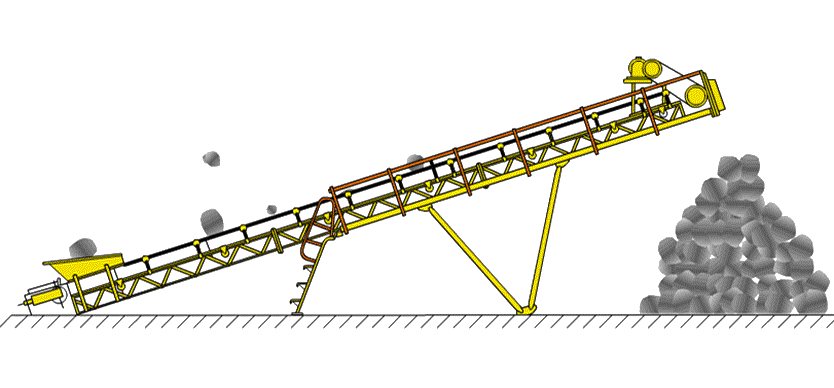

The belt conveyor is mainly composed of a frame, conveyor belt, rollers, drums, tensioning devices, transmission devices, etc. The drum that rotates the conveyor belt is called the drive drum, and the other drum that only changes the direction of movement of the conveyor belt is called the redirection drum. The drive drum is driven by an electric motor through a reducer, and the conveyor belt is dragged by the friction between the drive drum and the conveyor belt. The drive drum is generally installed at the discharge end to increase traction and facilitate dragging. The material is fed from the feeding end, falls on the rotating conveyor belt, and is transported to the discharge end by the friction of the conveyor belt.
Explore the essential equipment and features of a lead-zinc ore crushing plant, focusing on operational efficiency and investment ...
The 50-100t/h hard rock crushing plant from HAMAC is primarily composed of a jaw crusher, cone crusher, vibrating screen, and vibr...
Explore the essential equipment and features of a copper ore crushing plant, focusing on operational efficiency and investment ret...
Explore the essential equipment and features of a dolomite crushing plant, focusing on operational efficiency and investment retur...
Discover the benefits of the 100t/h hard rock portable crushing plant. Learn how its mobile design enhances flexibility, boosts pr...
Explore the essential equipment and features of a talc grinding plant, focusing on operational efficiency and investment return.
This mobile jaw crusher was exported to Oman in 2010. It is our biggest mobile jaw crusher. This client only process the big stone...
This 250tph stationary crushing and screening plant was installed in 2012 in China. Our clients came to our city visited many manu...
This 150tph stationary crushing and screening plant was installed in 2011 in Iraq. It was installed in a mountain valley. Up to no...
The manganese ore crushing plant was established in 2023 by a leading mining company aiming to enhance its manganese production ca...
Discover the 9-11t/h Industrial Solid Waste Powder Production Line by HAMAC Industrial Technology Group. This advanced system inte...
Russia is endowed with vast mineral resources, including significant copper deposits. The establishment of a modern copper ore cru...
| Section Form | Belt speed (m/s) | Widtd of belt | |||||
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| U type | 0.8 | 78 | 131 |
|
|
|
|
| 1 | 97 | 169 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
| 2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | |
| 3.15 |
|
|
824 | 1233 | 1858 | 2528 | |
| 4 | 2202 | 2996 | |||||
