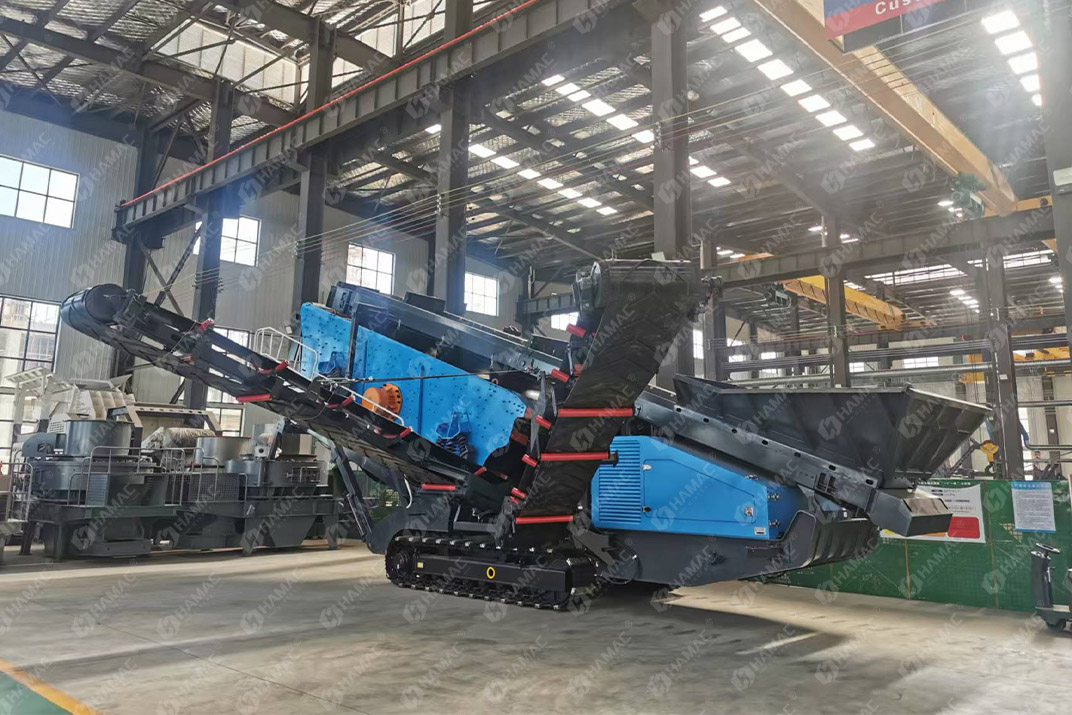

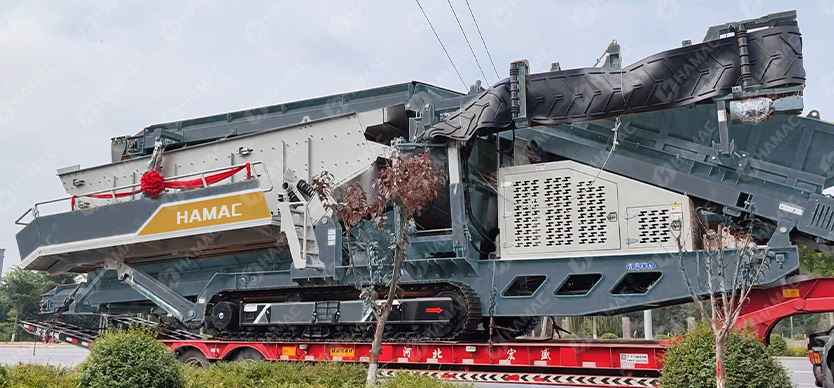

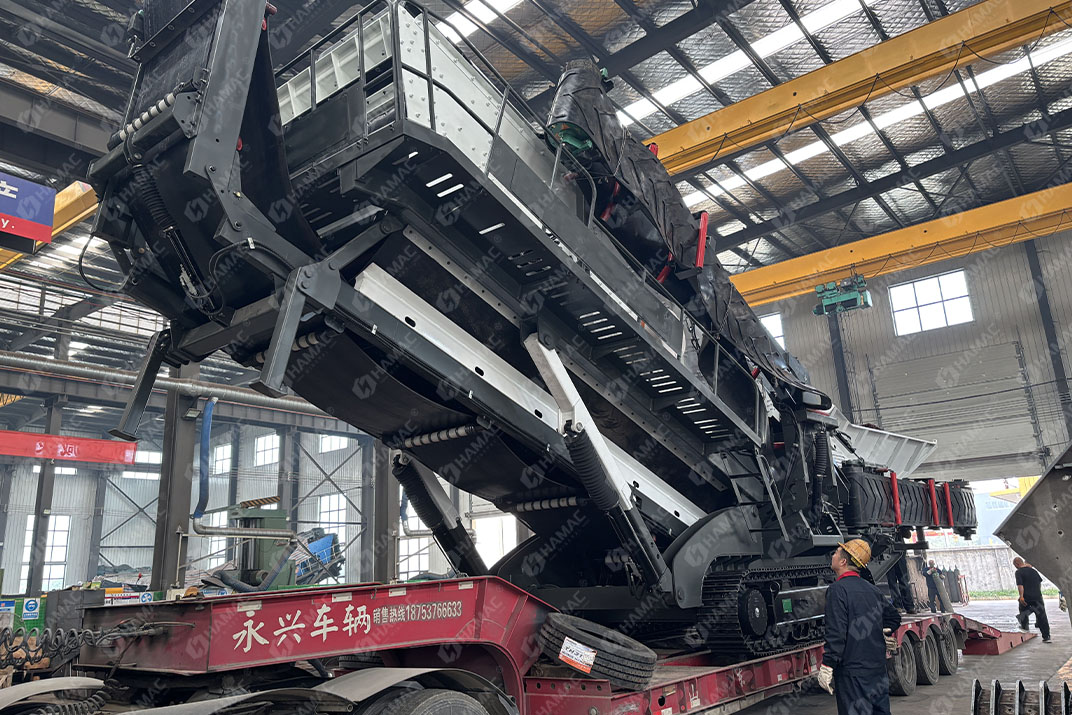

The HMC series tracked mobile crushers are widely used in aggregates production and recycling. Their track-mounted design allows for easy relocation within production sites or between sites. These mobile crushers enhance productivity, reduce operating costs, improve safety, and minimize environmental impact. While their core components are similar to those of stationary crushers, their full mobility enables operation on slopes with inclines up to 1:10.
Processing capacity : 200-500 （T/H）
Main machine power : 64.5-108 （KW）
Most types of rocks, metallic ores, and other minerals, such as limestone, granite, marble, basalt, iron ore, copper ore, and more.
Popular in aggregates, highway construction, railway construction, airport building, and several other industries.
Tracked crusher and screens are used widely in the world for different projects as below:
1. Widely used in mines, coal mines, recycling of garbage and construction waste, earthwork engineering, urban infrastructure, roads or construction sites.
2. Processing of topsoil and other materials; separation of viscous aggregate; construction and blasting industries; screening after crushing; quarrying industry.
The 150-200t/h hard rock crushing plant is designed for medium-scale aggregate production, efficiently processing tough materials ...
The 550-650t/h hard rock crushing plant is engineered for large-scale mining and construction operations, offering exceptional cap...
Discover the advantages of the 300t/h soft rock portable crushing plant. Learn how its mobile design increases productivity, reduc...
Explore the essential equipment and features of a Gabbro crushing plant, focusing on operational efficiency and investment return.
Explore the essential equipment and features of a calcite grinding plant, focusing on operational efficiency and investment return...
The 450-550t/h hard rock crushing plant is designed for large-scale projects, offering high capacity, exceptional reliability, and...
This 150tph stationary crushing and screening plant was installed in 2011 in Iraq. It was installed in a mountain valley. Up to no...
This mobile jaw crusher was exported to Oman in 2010. It is our biggest mobile jaw crusher. This client only process the big stone...
This mobile crushing and screening plant was exported to Guinea in 2012. It is a complete mobile crusher and vibrating screens on ...
This 150-180tph stationary crushing and screening plant was installed in 2009. In the spring festival holiday, this client called ...
Discover the HMAC Industrial Technology Group's 1500t/d gold ore processing plant in Tanzania. This project leverages state-of-the...
The manganese ore crushing plant was established in 2023 by a leading mining company aiming to enhance its manganese production ca...

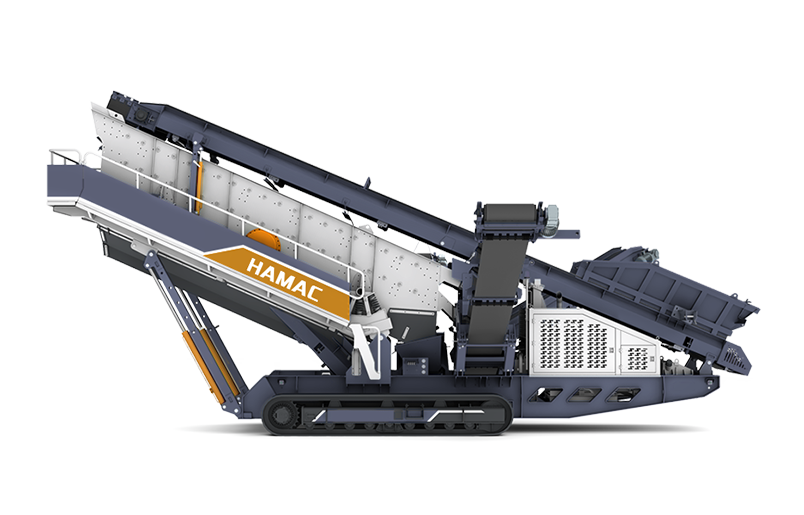

| Model | MS-3618E |
|---|---|
| Feeder |
|
| Volume | 2.8 m³ |
| Feeding height | 2288 mm |
| Maximum feed size | 200 mm |
| Feeding capacity | 350 t/h |
| Screening |
|
| Vibrating screen length×width | 1800 x 6000 mm |
| Number of layers | 3 |
| Conveyor |
|
| Main feeding conveyor belt width | 1000 mm |
| Transfer conveyor belt width | 500 mm |
| Fine material conveyor belt width×stacking height | 1000 x 4330 mm |
| Large material conveyor belt width×stacking height | 500 x 3640 mm |
| Medium material conveyor belt width×stacking height | 650 x 4000 mm |
| Medium & Fine material conveyor belt width×stacking height | 650 x 4000 mm |
| Power Unit |
|
| Generator power | 120 kW |
| Diesel tank capacity | 400 L |
| Hydraulic tank capacity | 300 L |
| Technical Data |
|
| Total power | 68.5 kW |
| Host power | 2 x 11 kW |
| Processing capacity | 200 - 500 t/h |
| Track speed | 0.6 - 1 km/h |
| Total weight | 35 t |

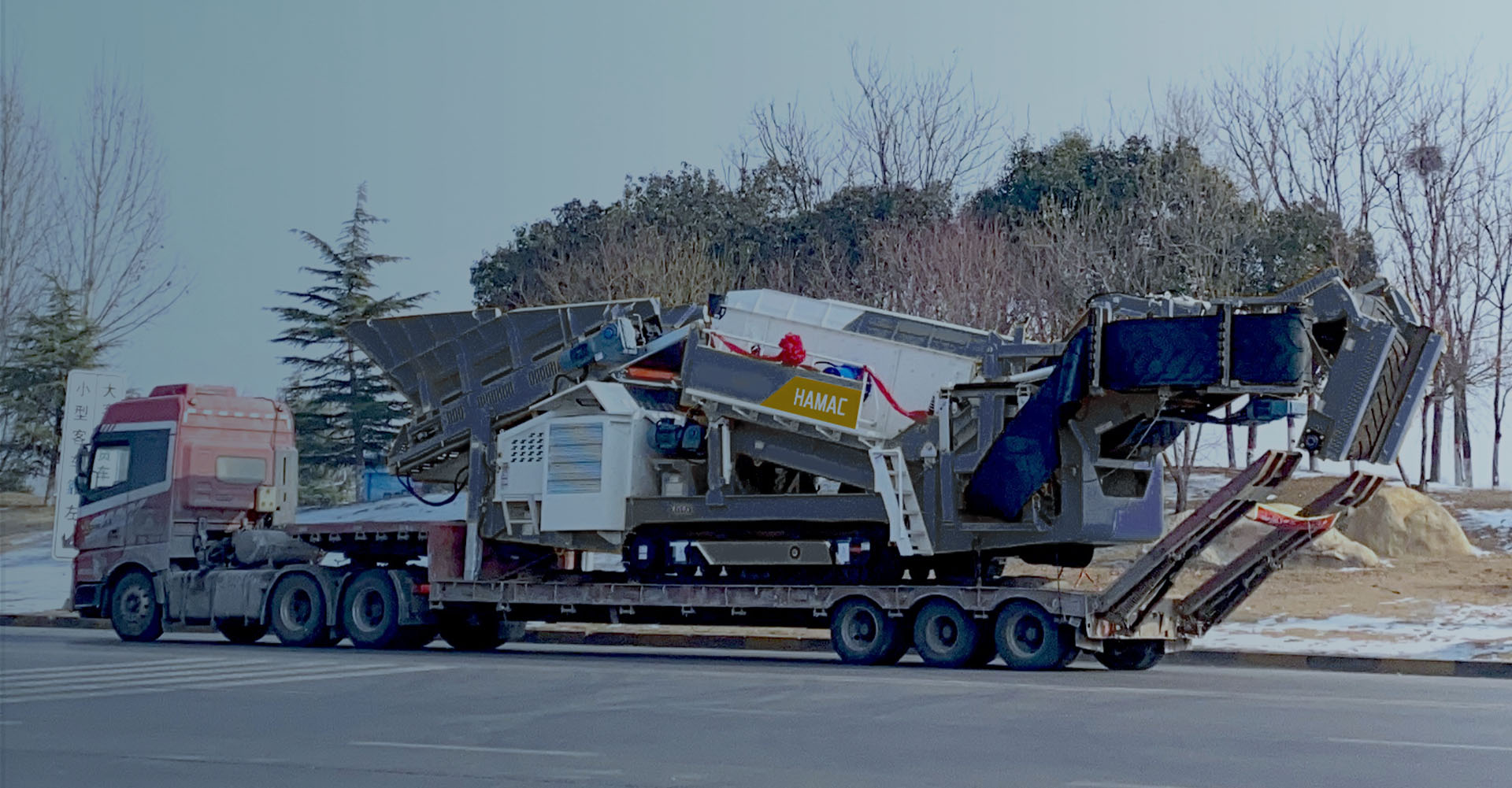

| Transport dimension | 16226 x 3359 x 3885 mm |
