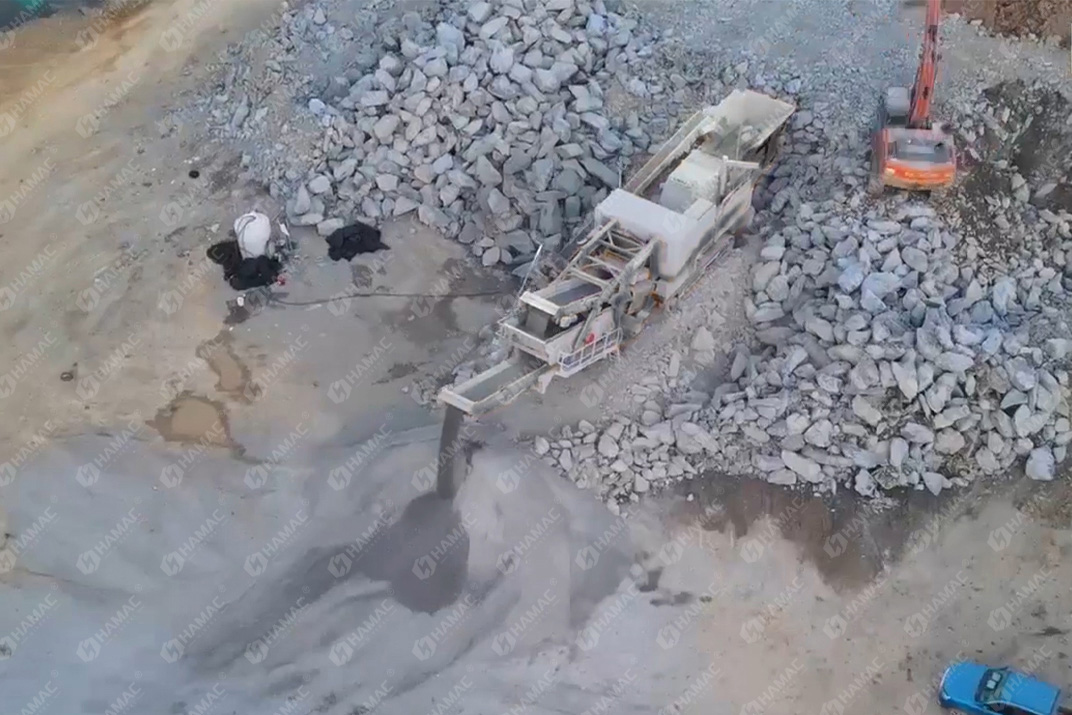

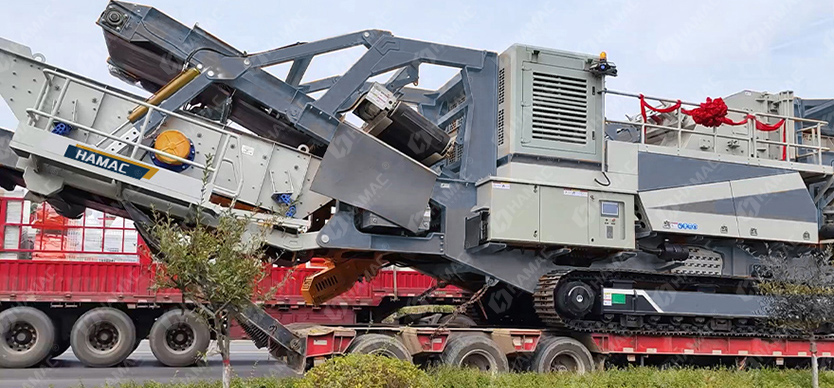

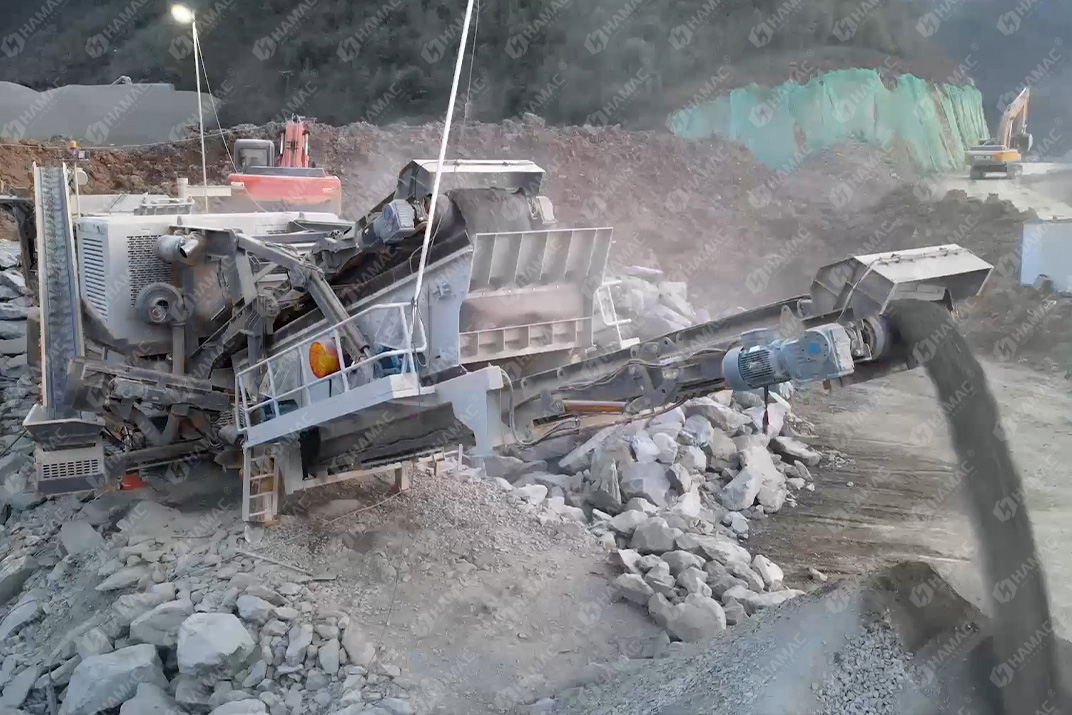

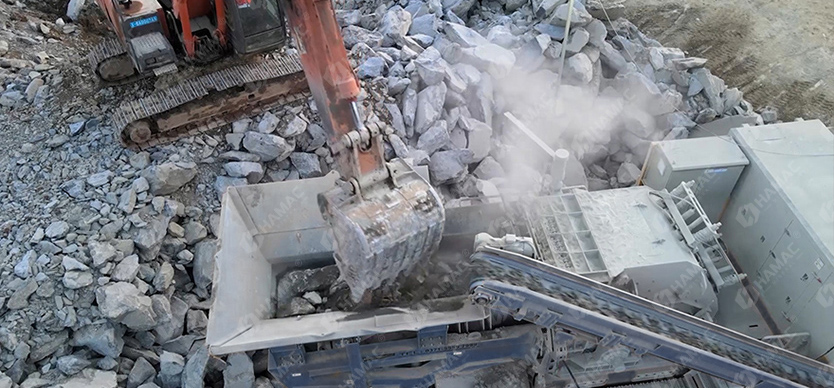

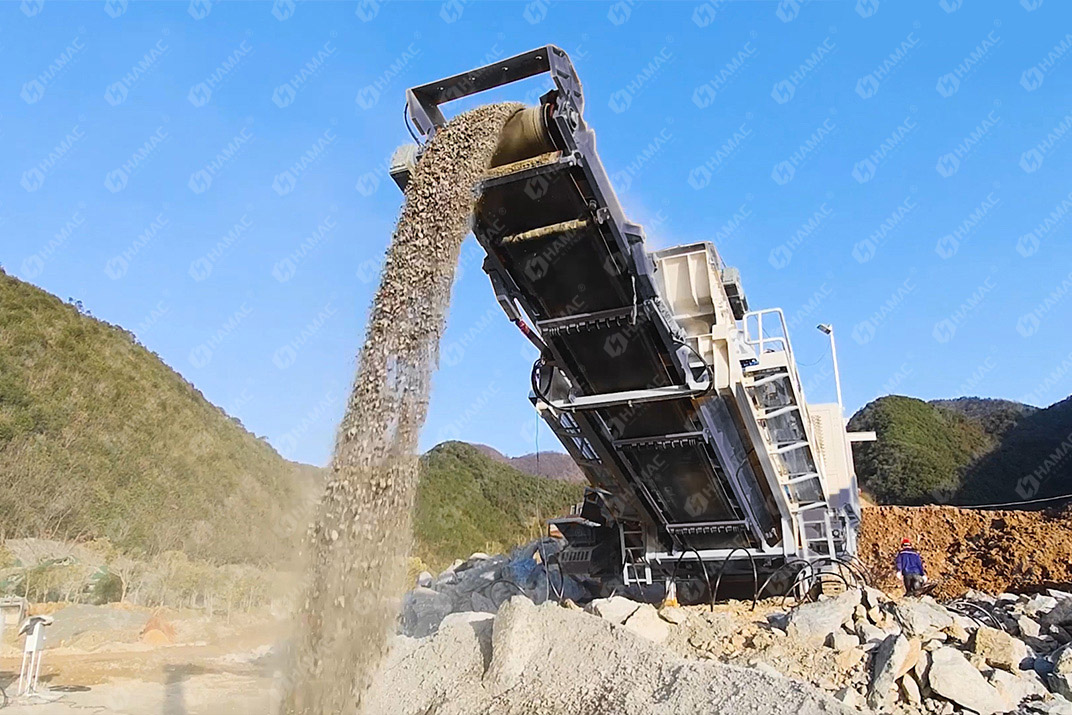

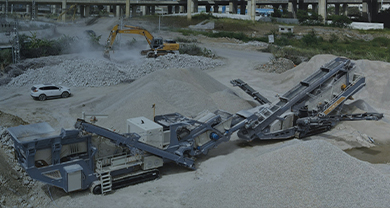

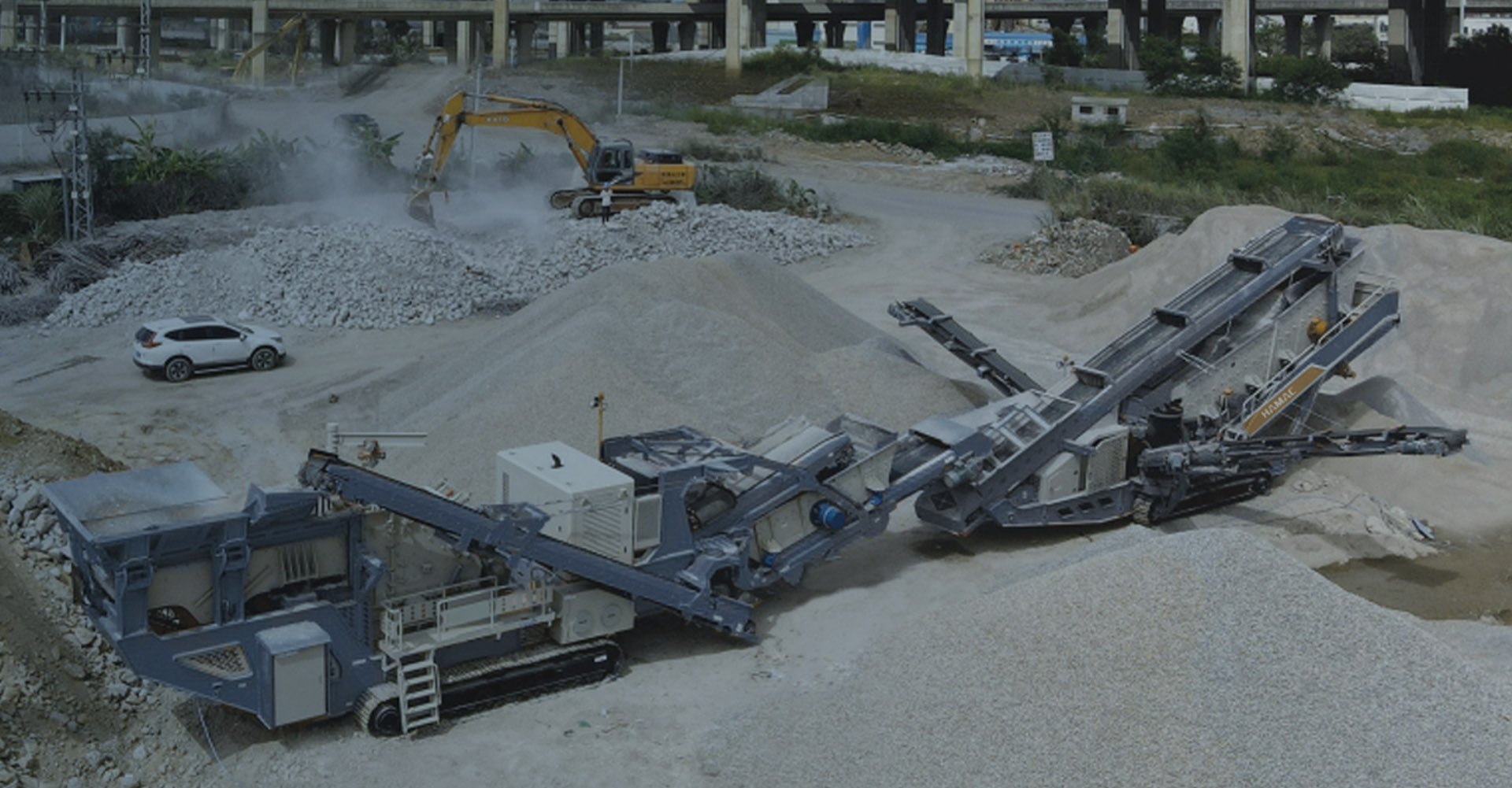

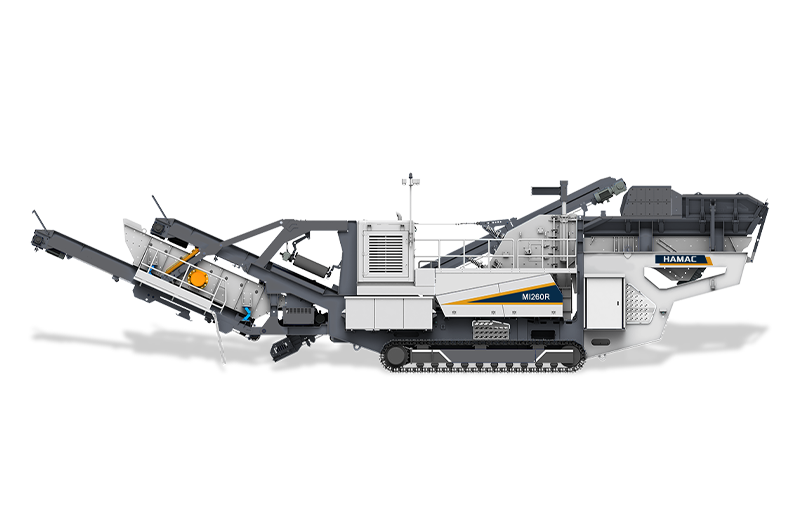

HMC series tracked mobile crushers are widely used in aggregates production and recycling globally. Their track-mounted design enables easy movement on-site and between locations. Often called "mobile crushing plants," they maximize productivity, reduce costs, enhance safety, and minimize environmental impact. While similar to stationary crushers in components, they offer full mobility, even on steep slopes up to a 1:10 incline, making them versatile and efficient for various applications.
Processing capacity : 100-600 （T/H）
Main machine power : 217.2-415.7 （KW）
Most types of rocks, metallic ores, and other minerals, such as limestone, granite, marble, basalt, iron ore, copper ore, and more.
Popular in aggregates, highway construction, railway construction, airport building, and several other industries.
Tracked crusher and screens are used widely in the world for different projects as below:
1. Widely used in mines, coal mines, recycling of garbage and construction waste, earthwork engineering, urban infrastructure, roads or construction sites.
2. Processing of topsoil and other materials; separation of viscous aggregate; construction and blasting industries; screening after crushing; quarrying industry.
The 650-750t/h hard rock crushing plant is designed for high-demand mining and construction operations, offering top-tier performa...

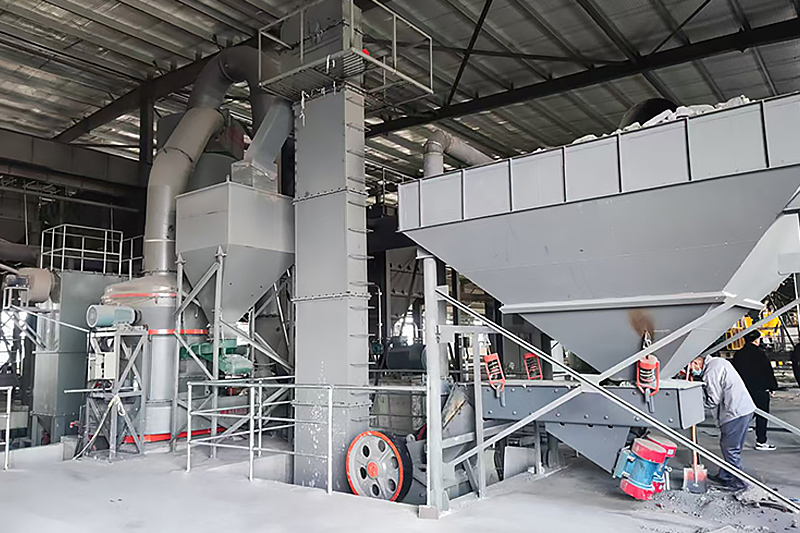

The limestone grinding plant is designed to process limestone into fine powder, which is essential for various industries such as ...
Explore the essential equipment and features of a gypsum grinding plant, focusing on operational efficiency and investment return.
The 500-550t/h soft rock crushing plant is designed for efficient processing of materials like limestone, gypsum, and dolomite. Eq...
The 150-200t/h soft rock crushing plant offers efficient solutions for processing materials like limestone and shale. With optimiz...
Explore the essential equipment and features of an iron ore crushing plant, focusing on operational efficiency and investment retu...
Discover the advanced 250tph granite crusher plant in the Philippines by HAMAC Industrial Technology Group. This state-of-the-art ...

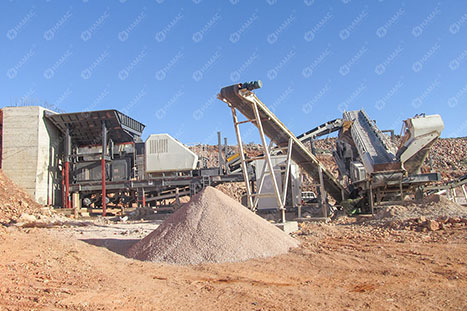

This mobile crushing and screening plant was exported to Algeria in 2013. It is a complete mobile crusher and vibrating screens on...
This 250tph stationary aggregate crushing and screening plant as delivered to South Sudan in 2011. It is a project which was inves...
Discover the HMAC Industrial Technology Group's 1500t/d gold ore processing plant in Tanzania. This project leverages state-of-the...

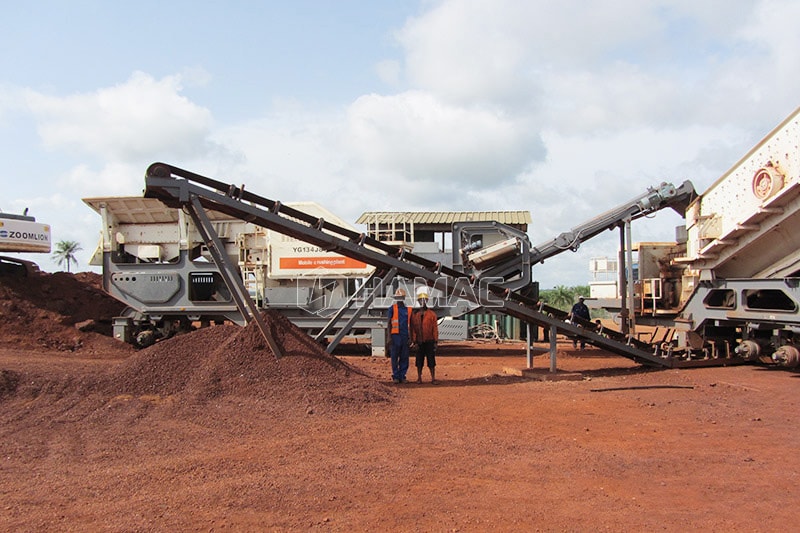

This mobile crushing and screening plant was exported to Guinea in 2012. It is a complete mobile crusher and vibrating screens on ...
This mobile crushing and screening plant was exported to Chile in 2012. It is a complete mobile crusher and vibrating screens on t...
| Model | MI260RE | MI350RE |
|---|---|---|
| Feeder | ||
| Volume(m³) | 7 | 7.5 |
| Feeding height(mm) | 4222 | 4124 |
| Maximum feed size(mm) | 600 | 600 |
| Feeding capacity(t/h) | 300 | 400 |
| Crusher | ||
| Host model | MIX2 | MIX3 |
| Return screen length×width(mm) | 1540x3600 | 1740x5000 |
| Number of layers | 1 | 1 |
| Closed side setting(mm) | 25-100 | 25-100 |
| Conveyor | ||
| Main conveyor belt width (mm) | 1200 | 1200 |
| Transfer conveyor belt width (mm) | 500 | 500 |
| Re-circulation conveyor belt width (mm) | 500 | 500 |
| Under screen conveyor belt width (mm) | 1200 | 1000 |
| Stack height （mm） | 3471 | 3042 |
| Power Unit | ||
| Generator power (kW) | 400KW | 500KW |
| Diesel tank capacity | 1000L | 1000L |
| Hydraulic tank capacity | 300L | 300L |
| Technical Data | ||
| Total power(kw) | 262.6 | 347.2 |
| Host power(kw) | 200 | 280 |
| Processing capacity(t/h) | 160-350 | 250-500 |
| Track speed(km/h) | 0.6-1 | 0.6-1 |
| Total weight(t) | 57 | 65 |
| Transport dimension(mm) | 18127×3626×3872 | 18882x3505x3872 |
