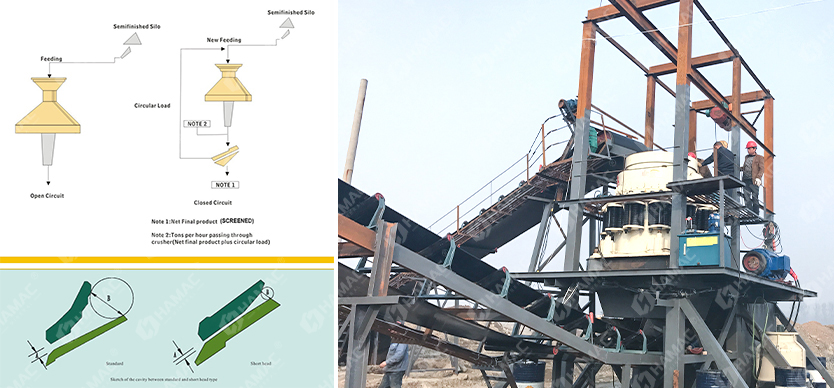

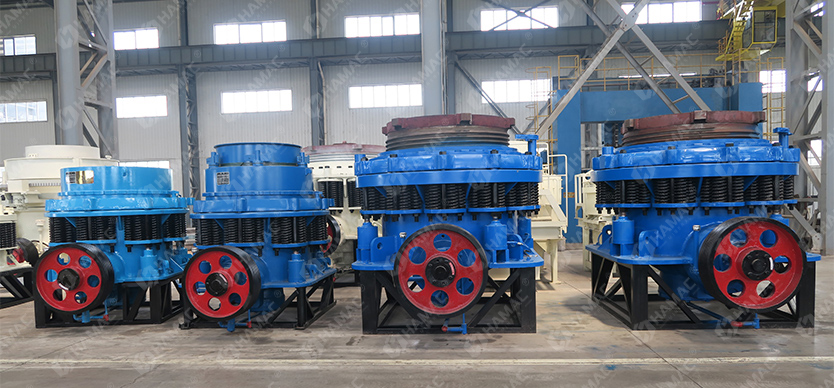

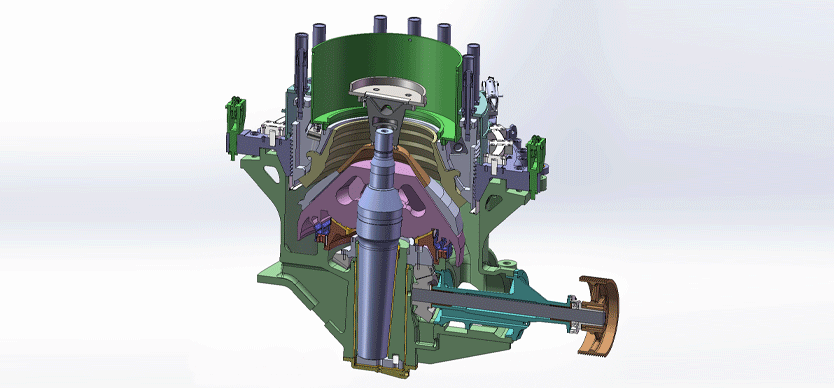

The S series Symons cone crusher is a high-efficiency cone crusher that integrates optimized cavity design, appropriate stroke, and advanced technology. It employs a laminated crushing principle, focusing on more crushing and less grinding. The crushing chamber type is determined by the feed size and desired fineness of the crushed product. This design ensures improved performance and efficiency in various crushing applications.
High cost performance
Small volume but high efficiency
Most types of rocks, metallic ores, and other minerals, such as limestone, granite, marble, basalt, iron ore, copper ore, and more.
Popular in aggregates, highway construction, railway construction, airport building, and several other industries.

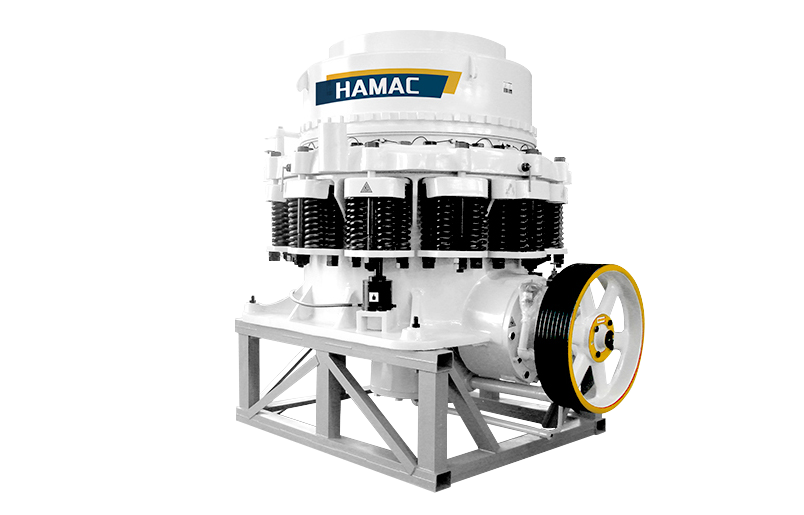

S series Symons Cone Crusher is an advanced cone rock crusher which represents the domestic advanced technology level. For years, HAMAC has been using the US-developed advanced crusher technology. This series cone crusher machine is widely used in metallurgical, construction, chemical and building material industry, suitable for hard and medium hard materials such as mine ore, limestone, quartz, granite, sandstone and so on. It is proven that the crusher with worldwide performance and reliable quality has gained the customers' praise. It is an ideal cone crusher almost the same as original Symons cone crusher for sale.
The 300-350t/h soft rock crushing plant is designed for high-efficiency processing of materials like limestone, gypsum, and dolomi...
The 200-250t/h soft rock crushing plant is designed to efficiently process materials like limestone, gypsum, and dolomite. With an...
Explore the essential equipment and features of a calcite grinding plant, focusing on operational efficiency and investment return...
The 900-1050t/h hard rock crushing plant is a high-capacity, heavy-duty crushing solution designed for large-scale mining and cons...
Explore the essential equipment and features of a kaolin grinding plant, focusing on operational efficiency and investment return.
Discover the advantages of the 300t/h soft rock portable crushing plant. Learn how its mobile design increases productivity, reduc...
This 150-180tph stationary crushing and screening plant was installed in 2009. In the spring festival holiday, this client called ...
Discover the advanced 250tph granite crusher plant in the Philippines by HAMAC Industrial Technology Group. This state-of-the-art ...
The manganese ore crushing plant was established in 2023 by a leading mining company aiming to enhance its manganese production ca...
Russia is endowed with vast mineral resources, including significant copper deposits. The establishment of a modern copper ore cru...
This 250tph stationary aggregate crushing and screening plant as delivered to South Sudan in 2011. It is a project which was inves...
This mobile crushing and screening plant was exported to Guinea in 2012. It is a complete mobile crusher and vibrating screens on ...
| Model | SCC 3’ | SCC 4 1/4’ | SCC 5 1/2’ | SCC 7’ |
|---|---|---|---|---|
| Dia. | 900 mm (3’) | 1295 mm (4 1/4’) | 1650 mm (5 1/2’) | 2134 mm (7’) |
| Fine Closing Side | 83 mm | 109 mm | 188 mm | 253 mm |
| Fine Open Side | 102 mm | 137 mm | 209 mm | 278 mm |
| Medium Closing Side | 159 mm | 188 mm | 213 mm | 303 mm |
| Medium Open Side | 175 mm | 210 mm | 241 mm | 334 mm |
| Coarse Closing Side | 159 mm | 216 mm | 241 mm | 334 mm |
| Coarse Open Side | 175 mm | 241 mm | 268 mm | 369 mm |
| Outlet Setting | 9-22 mm | 13-38 mm | 16-38 mm | 19-38 mm |
| Shaft Speed | 580 r/min | 485 r/min | 485 r/min | 435 r/min |
| Power | 75 kW | 160 kW | 220 kW | 315 kW |
| Capacity | 45-91 t/h | 109-181 t/h | 181-327 t/h | 381-726 t/h |
| Weight | 15 t | 27 t | 55 t | 110 t |
| Dimension | 2821×1880×2164 mm | 2800×2342×2668 mm | 3911×2870×3771 mm | 4613×3251×4732 mm |
| Model | SCCD 3’ | SCCD 4 1/4’ | SCCD 5 1/2’ | SCCD 7’ |
|---|---|---|---|---|
| Dia. | 914 mm (3’) | 1295 mm (4 1/4’) | 1676 mm (5 1/2’) | 2134 mm (7’) |
| Fine Closing Side | 13 mm | 29 mm | 35 mm | 51 mm |
| Fine Open Side | 41 mm | 64 mm | 70 mm | 105 mm |
| Medium Closing Side | 33 mm | 54 mm | 54 mm | 95 mm |
| Medium Open Side | 60 mm | 89 mm | 89 mm | 133 mm |
| Coarse Closing Side | 56 mm | 70 mm | 98 mm | 127 mm |
| Coarse Open Side | 89 mm | 105 mm | 133 mm | 178 mm |
| Outlet Setting | 3-13 mm | 3-16 mm | 5-13 mm | 5-16 mm |
| Shaft Speed | 580 r/min | 485 r/min | 485 r/min | 435 r/min |
| Power | 75 kW | 160 kW | 220 kW | 315 kW |
| Capacity | 27-90 t/h | 36-163 t/h | 90-209 t/h | 190-408 t/h |
| Weight | 15 t | 27 t | 55 t | 110 t |
| Dimension | 2821×1880×2410 mm | 2800×2342×2668 mm | 3917×2870×3771 mm | 4130×3251×4454 mm |
